Infrastructure Hardware > Cable Management

click photo to enlarge

36949

Photo may show similar product

Other views

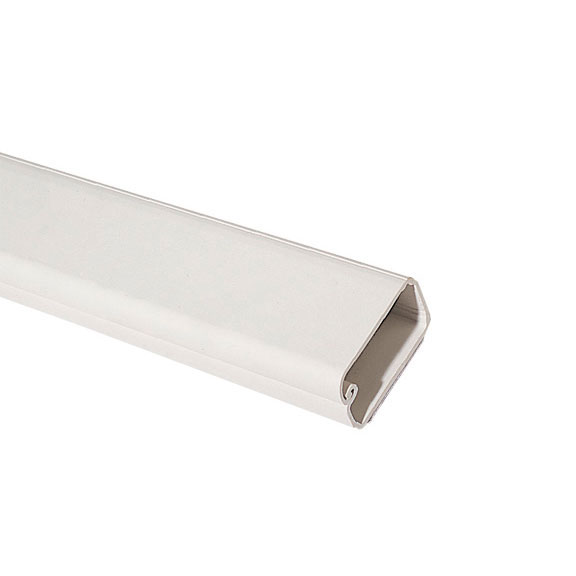

Hinged Raceway with Adhesive Back, 6-ft. (1.8-m) Length, 2900 Series (1 1/2"W x 3/4"D)

Protect and hide cables without burying them inside walls.

36949


Lifetime Warranty

Product Highlights

  • Run cables neatly along the perimeter of walls.
  • Holds UTP, STP, fiber, coax, telephone, and other low-voltage cables of 50 volts or less.
  • One-piece design is easy to handle, easy to install. Just cut to the size you need.
  • Guaranteed for life!

  • Description

    Hinged Raceway with Adhesive Back, 6-ft. (1.8-m) Length, 2900 Series (1 1/2"W x 3/4"D)


    Quick Facts

  • Run cables neatly along the perimeter of walls.
  • Holds UTP, STP, fiber, coax, telephone, and other low-voltage cables of 50 volts or less.
  • One-piece design is easy to handle, easy to install. Just cut to the size you need.
  • Guaranteed for life!

  • Further Details

  • Features an easy-open, snap-close latch design.
  • Flexible co-extruded hinge provides flexibility and durability—even with repeated openings and closings.
  • Adhesive backing for easy installation.
  • Durable PVC material resists impacts and corrosion.
  • Nonflammable, self-extinguishing characteristics and tested to comparable specifications of UL® 94V-0.
  • Ivory finish can be left as is or painted to match your decor.
  • Compatible with our GigaStation2 Surface-Mount Housings, Wallplates, and Snap Fittings.
  • Also accepts industry-standard and proprietary devices from a wide range of manufacturers.
  • Two other sizes are available.


  • Do the runaround.
    Instead of breaking into the walls and trying to set up complicated wiring systems, run your cables along the walls. With our Hinged Raceways, you can install cables along your walls in a neat, orderly manner.

    A versatile routing system.
    The raceways provide an easy solution for running cable in conference rooms, offices, classrooms, training centers, even small and home offices. They also solve the problem of how to run cable in historic buildings where you don’t want to disturb the walls and in structures with concrete and block walls where you can’t penetrate the walls easily.

    Choose your cable.
    You can use these raceways with almost any type of cable: CAT5e, fiber, coax, telephone, and more. They’re ideally suited for data, voice, video, and other low-voltage cables of 50 volts or less. The raceways and components all have nonflammable, self-extinguishing characteristics, and are tested to comparable specifications of UL® 94V-0.

    Durable and accessible.
    One of the biggest advantages of Hinged Raceways is how accessible your cable is. If there’s ever a problem, or if you need to change or reroute cable, you can. All you have to do is pull open the raceway, then snap it shut. A special coextruded PVC hinge design provides flexibility and durability to withstand repeated openings and closings.

    Easy to use.
    The one-piece design and adhesive backing make these raceways easy to handle and install. Choose from a large selection of fittings to complete your system. For even more compatibility and versatility, the raceways also accept industry-standard and proprietary devices from a wide range of manufacturers. This gives you a seamless and aesthetically pleasing system for running your cables. You can also paint the raceways to match your decor.

    Three sizes.
    Choose raceways in three widths, depending on how much cable you need to run in one raceway.

    *NOTE: Capacity is calculated at 40% of raceway, the maximum fill based on EIA/TIA-569.


    Technical Specifications for Hinged Raceway with Adhesive Back, 6-ft. (1.8-m) Length, 2900 Series (1 1/2"W x 3/4"D):

    Cable Capacity* — 12) CAT3; (10) CAT5e; (7) CAT6; (11) 4-Pair Telephone; (11) RG-58 Coax; or (11) 62.5-µm Duplex Fiber
    *NOTE: Capacity is calculated at 40% of raceway, the maximum fill based on EIA/TIA-569.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hinged Raceway with Adhesive Back, 6-ft. (1.8-m) Length, 2900 Series (1 1/2"W x 3/4"D):


    Connect your Hinged Raceway with Adhesive Back, 6-ft. (1.8-m) Length, 2900 Series (1 1/2"W x 3/4"D) with:

    Accessory: 36926

    Hinged Raceway Cover Clip, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway Cover Clip, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36932

    Hinged Raceway Drop-Ceiling Connector, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway Drop-Ceiling Connector, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36928

    Hinged Raceway 90° Flat Elbow, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway 90° Flat Elbow, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36930

    Hinged Raceway Internal Elbow, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway Internal Elbow, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36927

    Hinged Raceway Blank-End Fitting, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway Blank-End Fitting, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36929

    Hinged Raceway Tee, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway Tee, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36931

    Hinged Raceway External Elbow, 2900 Series (1 1/2"W x 3/4"D)

    Hinged Raceway External Elbow, 2900 Series (1 1/2"W x 3/4"D)

    Accessory: 36934

    Hinged Raceway Adapters

    Hinged Raceway Adapters, 2700/2900 Series

    Accessory: 36940

    HInged Raceway Wire Clip, 2900 Series (1 1/2"W x 3/4"D)

    HInged Raceway Wire Clip, 2900 Series (1 1/2"W x 3/4"D), Use One Every 2 ft. (0.6 m),
