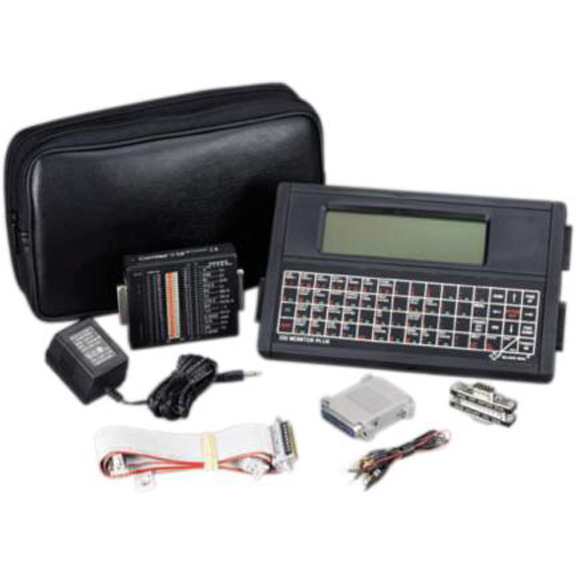

DT200A

Photo may show similar product

Other views

232 Monitor Plus

All the features of PC-based testers in a handheld unit.

DT200A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Sync or async.
  • Full QWERTY keyboard plus directional keypad.
  • Displays 8 rows of 30/40 characters.


  • Description

    232 Monitor Plus


    Quick Facts

  • Sync or async.
  • Full QWERTY keyboard plus directional keypad.
  • Displays 8 rows of 30/40 characters.

  • Further Details

  • Complete real-time monitoring and testing from remote sites.
  • Data rates from 75 bps to 57.6 kbps (async) or 75 bps to 64 kbps (sync).
    232 Monitor Plus includes:

  • Technical Specifications for 232 Monitor Plus:

    Specifications
    Keyboard Layout — Full QWERTY keyboard
    Display — 8 rows of 30/40 characters
    On-Line Help — Yes (printable)
    Remote Control — Complete real-time monitoring; testing from remote site
    Protocol — Sync, async monosync, BBC, isochronous
    Autoconfiguration — Protocol, data rate, framing parity (one keystroke)
    Data Rates — Async: 75 bps to 57.6 kbps; Sync: 75 bps to 64 kbps
    Data Display Codes — ASCII, Hex, EBCDIC, IPARS, Baudot
    Parity — Odd, even, none
    NVR RAM Size — 128 KB
    Go to Location — Yes
    Interface Signals Captured — DSR, RTS, CTS, DCD, RI, DTR
    Data Encoding — NRZ, NRZI, FM0, FNM1
    User Selections — TXD/RXD buffer, user-defined strings, ASCII, HEX 0-Off, BERT space, mark, alternating bits, Fox 1/2
    Connectors — (1) DB25 M, (1) DB25 F
    Trigger Capabilities — Start/Stop capture, Auto Retrigger (Snap)
    Trigger Options — D/RD: String data, Any data, Interface signal pattern
    Bit Error Rate Tests — Yes, and performance
    Performance/Response Measurement — Yes to 999,999,999 bytes
    Stop Bits — 1, 1.5, 2
    Status Messages — Normal, Long, Short, OFF
    CE Approval — 230-VAC version: DT200AE
    Power — (1) 9-VDC alkaline battery or wall transformer (both included)
    Size — 1.4“H x 9.3“W x 5.5“D (3.6 x 23.6 x 14 cm)
    Weight — 1.4 lb. (0.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 232 Monitor Plus:


    Connect your 232 Monitor Plus with:
