Cables > Fiber - Multimode

click photo to enlarge

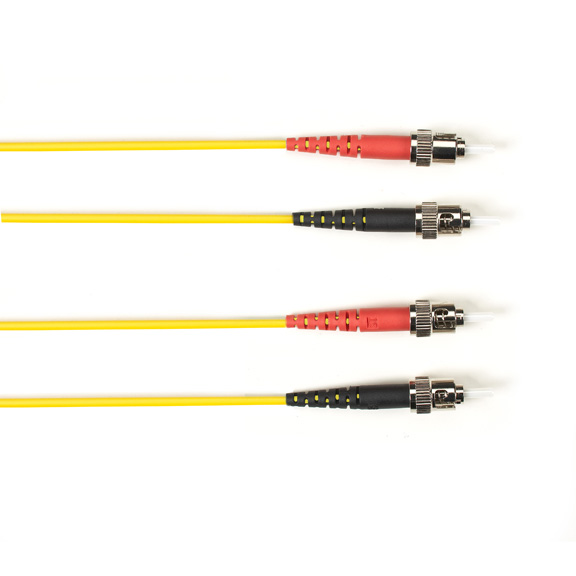

FOCMP62-020M-STST-YL

Photo may show similar product

Other views

20-m, ST-ST, 62.5-Micron, Multimode, Plenum, Yellow Fiber Optic Cable

Get fiber patch cable in 12 different colors without the hassle of placing a custom order.

FOCMP62-020M-STST-YL


Lifetime Warranty

Product Highlights

  • Match Black Box fiber cable to your company, team, or school colors for that special networking application.
  • Choose from four cores: 62.5-, 50-, 10-GbE laser-optimized 50-micron multimode, and 9-micron single-mode cable.
  • Get the connectors you want: ST, SC, LC, and MT-RJ in 10 different combinations.
  • Choose from 12 different colors.
  • Select from 13 lengths ranging from 1 to 30 meters.
  • Guaranteed for life!


    • Description

    20-m, ST-ST, 62.5-Micron, Multimode, Plenum, Yellow Fiber Optic Cable


    Quick Facts

  • Match Black Box fiber cable to your company, team, or school colors for that special networking application.
  • Choose from four cores: 62.5-, 50-, 10-GbE laser-optimized 50-micron multimode, and 9-micron single-mode cable.
  • Get the connectors you want: ST, SC, LC, and MT-RJ in 10 different combinations.
  • Choose from 12 different colors.
  • Select from 13 lengths ranging from 1 to 30 meters.
  • Guaranteed for life!


    • Further Details

  • Get high performance at data rates up to 1 Gbps at 850 nm.
  • Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
  • Full compatibility with a broad range of laser-based and legacy protocols and applications.
  • Industry-leading CPC® coatings for superior microbend and environmental performance.

    • How to order these cables:
    Once you’ve decided what type of cable you want, download the product data sheet to see how to build your cable part number. It’s super easy and super convenient. No need to get a custom quote.

    Examples of fiber optic cable codes:
    FOCMR62-001M-STST-BL = Cable with a PVC jacket, 62.5-micron core, 1-meter length, ST–ST connectors in blue.
    FOCMP50-008M-STLC-OR = Cable with a plenum jacket, 50-micron core, 8-meter length, ST–LC connectors in orange.
    FOCMRSM-030M-SCLC-YL = Cable with a PVC jacket, 9-micron core, 30-meter length, SC–LC connectors in yellow.

    FO (constant);
    Jacket: CMR (PVC) or CMP (Plenum);
    Core: 62- (62.5 Micron), 50- (50 Micron), 10- (10-GbE 50 Micron), or SM- (Single-Mode);
    Length: 001M- (1 Meter); 002M- (2 Meters); 003M- (3 Meters); 004M- (4 Meters); 005M- (5 Meters); 006M- (6 Meters); 007M- (7 Meters); 008M- (8 Meters); 010M- (10 Meters); 015M- (15 Meters); 020M- (20 Meters); 025M- (25 Meters); 030M- (30 Meters)
    Connectors: STST- (ST to ST); SCSC- (SC to SC); LCLC- (LC to LC); MTMT- (MT-RJ to MT-RJ); STSC- (ST to SC); STLC- (ST to LC); STMT- (ST to MT-RJ); SCLC- (SC to LC); LCMT- (LC to MT-RJ); SCMT- (SC to MT-RJ)
    BL (Blue); OR (Orange); GN (Green); BR (Brown); GR (Gray); WH (White); RD (Red); BK (Black); YL (Yellow); VT (Violet); PK (Pink); AQ (Aqua)


    Technical Specifications for 20-m, ST-ST, 62.5-Micron, Multimode, Plenum, Yellow Fiber Optic Cable:

    Attenuation — 62.5-µm: 850 nm: = 2.9 dB/km; 1300 nm: = 0.6 dB/km;
    50-µm PVC: 850 nm: = 2.4 dB/km; 1300 nm: = 0.7 dB/km;
    10-GbE 50-µm PVC: 850 nm: = 2.3 dB/km; 1300 nm: = 0.6 dB/km;
    9-µm: 1310 nm: 0.33–0.35 dB/km; 1383 nm: 0.31–0.35 dB/km; 1550 nm: 0.19–0.20 dB/km; 1625 nm: 0.20–0.23 dB/km
    Bandwidth — 62.5-µm: Intermediate performance EMB: 850 nm: 220 MHz/km;
    Legacy performance EMB: 850 nm: 200 MHz/km; 1300 nm: 500 MHz/km;
    50-µm: Intermediate performance EMB: 850 nm: 510 MHz/km;
    Legacy performance EMB: 850 nm: 500 MHz/km; 1300 nm: 500 MHz/km;
    10-GbE 50-µm: EMB: 850 nm: 2000 MHz/km;
    Legacy performance EMB: 850 nm: 1500 MHz/km; 1300 nm: 500 MHz/km Cladding Diameter — 125 µm
    Core Diameter — 62.5 µm, 50 µm, or 9 µm
    Operating Temperature — 14 to 158° F (-10 to +70° C)
    Optimized Data Rate — 62.5-µm: 850 nm: 1 Gbps over 300 m; 1300 nm: 1 Gbps over 550 m;
    50-µm: 1 Gbps over 600 m;
    10-GbE 50-µm: 1 Gbps over 1000 m at 850 nm; 10-Gbps at 300 m at 850 nm
    Standards — 62.5-µm: ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10: Type A1b fiber; TIA/EIA: 492AAAA-A;
    50-µm PVC: ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10: Type A1a.1 fiber; TIA/EIA: 492AAAB;
    10-GbE 50-µm PVC: ISO/IEC 11801: Type OM3 fiber; Type A1a.2TIA/EIA: 492AAAC-B
    Single-mode: ITU-T G.652 (Categories A, B, C, D); IEC 60793-2-50 Type B1.3; TIA/EIA 492-CAAB; Telecordia GR-20

    NOTE: Cables are not returnable.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
