Cables > Fiber - Multimode

click photo to enlarge

FOCMR62-020M-STLC-GN

Photo may show similar product

Other views

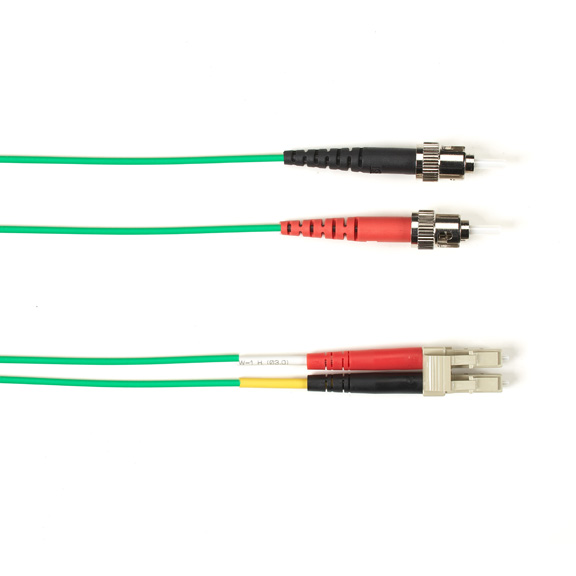

20-m, ST-LC, 62.5-Micron, Multimode, PVC, Green Fiber Optic Cable

Get fiber patch cable in 12 different colors without the hassle of placing a custom order.

FOCMR62-020M-STLC-GN


Lifetime Warranty

Product Highlights

  • Match Black Box fiber cable to your company, team, or school colors for that special networking application.
  • Choose from four cores: 62.5-, 50-, 10-GbE laser-optimized 50-micron multimode, and 9-micron single-mode cable.
  • Get the connectors you want: ST, SC, LC, and MT-RJ in 10 different combinations.
  • Choose from 12 different colors.
  • Select from 13 lengths ranging from 1 to 30 meters.
  • Guaranteed for life!


    • Description

    20-m, ST-LC, 62.5-Micron, Multimode, PVC, Green Fiber Optic Cable


    Quick Facts

  • Match Black Box fiber cable to your company, team, or school colors for that special networking application.
  • Choose from four cores: 62.5-, 50-, 10-GbE laser-optimized 50-micron multimode, and 9-micron single-mode cable.
  • Get the connectors you want: ST, SC, LC, and MT-RJ in 10 different combinations.
  • Choose from 12 different colors.
  • Select from 13 lengths ranging from 1 to 30 meters.
  • Guaranteed for life!


    • Further Details

  • Get high performance at data rates up to 1 Gbps at 850 nm.
  • Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
  • Full compatibility with a broad range of laser-based and legacy protocols and applications.
  • Industry-leading CPC® coatings for superior microbend and environmental performance.

    • How to order these cables:
    Once you’ve decided what type of cable you want, download the product data sheet to see how to build your cable part number. It’s super easy and super convenient. No need to get a custom quote.

    Examples of fiber optic cable codes:
    FOCMR62-001M-STST-BL = Cable with a PVC jacket, 62.5-micron core, 1-meter length, ST–ST connectors in blue.
    FOCMP50-008M-STLC-OR = Cable with a plenum jacket, 50-micron core, 8-meter length, ST–LC connectors in orange.
    FOCMRSM-030M-SCLC-YL = Cable with a PVC jacket, 9-micron core, 30-meter length, SC–LC connectors in yellow.

    FO (constant);
    Jacket: CMR (PVC) or CMP (Plenum);
    Core: 62- (62.5 Micron), 50- (50 Micron), 10- (10-GbE 50 Micron), or SM- (Single-Mode);
    Length: 001M- (1 Meter); 002M- (2 Meters); 003M- (3 Meters); 004M- (4 Meters); 005M- (5 Meters); 006M- (6 Meters); 007M- (7 Meters); 008M- (8 Meters); 010M- (10 Meters); 015M- (15 Meters); 020M- (20 Meters); 025M- (25 Meters); 030M- (30 Meters)
    Connectors: STST- (ST to ST); SCSC- (SC to SC); LCLC- (LC to LC); MTMT- (MT-RJ to MT-RJ); STSC- (ST to SC); STLC- (ST to LC); STMT- (ST to MT-RJ); SCLC- (SC to LC); LCMT- (LC to MT-RJ); SCMT- (SC to MT-RJ)
    BL (Blue); OR (Orange); GN (Green); BR (Brown); GR (Gray); WH (White); RD (Red); BK (Black); YL (Yellow); VT (Violet); PK (Pink); AQ (Aqua)


    Technical Specifications for 20-m, ST-LC, 62.5-Micron, Multimode, PVC, Green Fiber Optic Cable:

    Attenuation — 62.5-µm: 850 nm: = 2.9 dB/km; 1300 nm: = 0.6 dB/km;
    50-µm PVC: 850 nm: = 2.4 dB/km; 1300 nm: = 0.7 dB/km;
    10-GbE 50-µm PVC: 850 nm: = 2.3 dB/km; 1300 nm: = 0.6 dB/km;
    9-µm: 1310 nm: 0.33–0.35 dB/km; 1383 nm: 0.31–0.35 dB/km; 1550 nm: 0.19–0.20 dB/km; 1625 nm: 0.20–0.23 dB/km
    Bandwidth — 62.5-µm: Intermediate performance EMB: 850 nm: 220 MHz/km;
    Legacy performance EMB: 850 nm: 200 MHz/km; 1300 nm: 500 MHz/km;
    50-µm: Intermediate performance EMB: 850 nm: 510 MHz/km;
    Legacy performance EMB: 850 nm: 500 MHz/km; 1300 nm: 500 MHz/km;
    10-GbE 50-µm: EMB: 850 nm: 2000 MHz/km;
    Legacy performance EMB: 850 nm: 1500 MHz/km; 1300 nm: 500 MHz/km Cladding Diameter — 125 µm
    Core Diameter — 62.5 µm, 50 µm, or 9 µm
    Operating Temperature — 14 to 158° F (-10 to +70° C)
    Optimized Data Rate — 62.5-µm: 850 nm: 1 Gbps over 300 m; 1300 nm: 1 Gbps over 550 m;
    50-µm: 1 Gbps over 600 m;
    10-GbE 50-µm: 1 Gbps over 1000 m at 850 nm; 10-Gbps at 300 m at 850 nm
    Standards — 62.5-µm: ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10: Type A1b fiber; TIA/EIA: 492AAAA-A;
    50-µm PVC: ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10: Type A1a.1 fiber; TIA/EIA: 492AAAB;
    10-GbE 50-µm PVC: ISO/IEC 11801: Type OM3 fiber; Type A1a.2TIA/EIA: 492AAAC-B
    Single-mode: ITU-T G.652 (Categories A, B, C, D); IEC 60793-2-50 Type B1.3; TIA/EIA 492-CAAB; Telecordia GR-20

    NOTE: Cables are not returnable.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 20-m, ST-LC, 62.5-Micron, Multimode, PVC, Green Fiber Optic Cable:


    Connect your 20-m, ST-LC, 62.5-Micron, Multimode, PVC, Green Fiber Optic Cable with:

    Accessory: EXP10G006A

    10-Gigabit Laser-Optimized OM3 50-Micron Distribution-Style Fiber Optic Bulk Cable, Plenum (OFNP), 6-Fiber, Cut to Length

    10-Gigabit Laser-Optimized OM3 50-Micron Distribution-Style Fiber Optic Bulk Cable, Plenum (OFNP), 6-Fiber, Cut to Length

    » more info

    Accessory: EXP3006A

    Multimode, 62.5-Micron, Distribution-Style Bulk Fiber Optic Cable, Plenum, 6-Fiber, Cut to Length

    Multimode, 62.5-Micron, Distribution-Style Bulk Fiber Optic Cable, Plenum, 6-Fiber, Cut to Length

    » more info

    Accessory: EXPIA3012A

    Interlocking Armored, 12-Strand, 62.5-Micron Multimode Fiber Optic Cable, Cut to Length

    Interlocking Armored, 12-Strand, 62.5-Micron Multimode Fiber Optic Cable, Cut to Length

    » more info

    Accessory: EXNSM006CMR

    Single-Mode, 9-Micron, Distribution-Style, Custom-Length Fiber Optic Cable, PVC CMR, 6-Strand

    Single-Mode, 9-Micron, Distribution-Style, Custom-Length Fiber Optic Cable, PVC CMR, 6-Strand

    » more info

    Accessory: EXP35006A

    Multimode, 50-Micron, Distribution-Style, 6-Fiber, Cut to Length Fiber Optic Bulk Cable

    Multimode, 50-Micron, Distribution-Style, 6-Fiber, Cut to Length Fiber Optic Bulk Cable

    » more info

    Accessory: EXN0625A

    Multimode, General-Purpose, Bulk Fiber Optic Cable, Cut to Length

    Multimode, General-Purpose, Bulk Fiber Optic Cable, Cut to Length

    » more info

    Accessory: EXN050A

    Multimode, General-Purpose, Bulk Fiber Optic Cable, PVC, Zipcord Duplex, Custom Lengths

    Multimode, General-Purpose, Bulk Fiber Optic Cable, PVC, Zipcord Duplex, Custom Lengths

    » more info

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
