Power > Power Distribution


click photo to enlarge

PDUBV20-S30-200+

Photo may show similar product

Other views

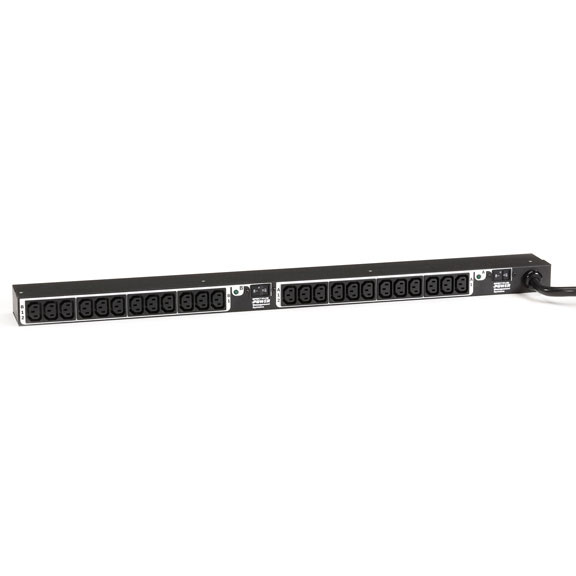

20-Outlet Vertical AC Power Strip with Surge Protection, Dual-Circuit

Two circuit breakers for superior reliability.

PDUBV20-S30-200+

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Features 18 IEC C13 and 2 IEC C19 receptacles.
  • Saves space—mounts vertically in your cabinet.
  • Two independent UL® 489 Listed circuit breakers—when one is overloaded, the other still gets power.
  • Fuseless design enables a quick return to service.
  • Fast and easy installation.


  • Further Details



    AC Voltage Input and output: 200 - 250 volts
    Input Protection (2) 15-A 2-pole circuit breakers
    Load Capacity 30 A (derated to 24 amps)
    Outlets (18) front IEC C13, (2) front IEC C19
    Plug Type 9.5-foot (2.9-m) power cord with NEMA L6-30P plug
    Standards UL® 489
    CE Approval Yes
    RoHS Yes
    Size 33"H x 1.75"W x 3.5"D (83.8 x 4.4 x 8.9 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • 20-Outlet Vertical AC Power Strip with Surge Protection, Dual-Circuit
      (Version 1)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Black Box Explains


    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The 20-Outlet Vertical AC Power Strip with Surge Protection, Dual-Circuit comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    24-Outlet Vertical AC Power Strip, Single-Circuit PDUBV24-S20-200+ $265.60

    24-Outlet Vertical AC Power Strip with Surge Protection, Dual-Circuit PDUBV24-S30-200+ $312.05

    12-Outlet Vertical Rackmount AC Power Strip, 20 Amp PDUBH12-S20-200+ $288.85

    12-Outlet Vertical Rackmount AC Power Strip, 30-Amp PDUBH12-S30-200+ $381.75

    20-Amp Rackmount Power Strip with Front and Rear Outlets PDUBH14-S20-120V $127.25

    Metered Rackmount PDU with Front and Rear Outlets, 20-Amp PDUMH14-S20-120V $191.85

    Metered Rackmount PDU with Front and Rear Outlets - 15-Amp PDUMH14-S15-120V $157.55
