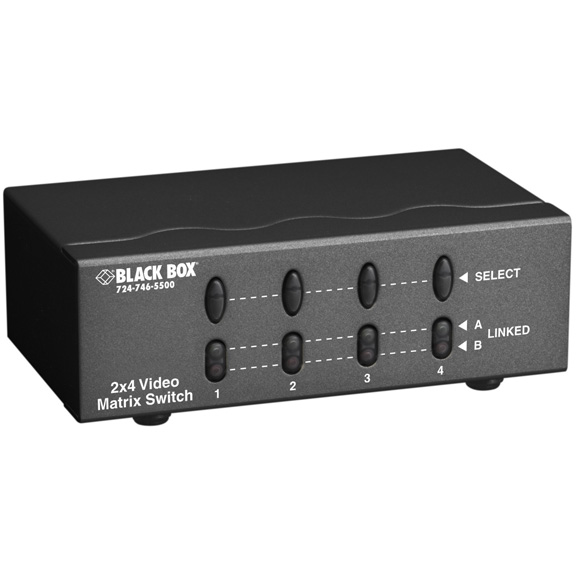

AC508A

Photo may show similar product

Other views

2 x 4 Channel Video Matrix Switch

Show video images from two separate sources on up to four displays.

AC508A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Built-in video signal enhancement for placing monitors up to 213.2 feet (65 m) away
  • Intelligent functionality gives you the flexibility to use a broad range of video devices, from CRT and LCD monitors to new plasma TVs or video projectors.

  • Description

    2 x 4 Channel Video Matrix Switch


    Quick Facts

  • Built-in video signal enhancement for placing monitors up to 213.2 feet (65 m) away
  • Intelligent functionality gives you the flexibility to use a broad range of video devices, from CRT and LCD monitors to new plasma TVs or video projectors.

  • Further Details

  • Supports VGA, SVGA, XGA, and multisync monitors or equivalent multimedia projector.
  • Source video is easily selectable via front-panel switches.
  • Convenient HD15 female connections.
  • Output is compatible with standard VGA cards.
  • Cascadable for even more flexibility.
  • Supports VESA DDC, DDC2, DDC2B standards (for “Video Out” Ports 1 and 2).
  • Works with high-resolution, 250-MHz pixel frequency and resolutions up to 1920 x 1440.
  • Accepts input from PC or Mac® sources.

  • Great for remote display applications where you want to distribute images from a central secure room to public or non-secure areas. Plus it's the logical choice for any digital signage application.

    The Black Box® 2 x 4 Channel Video Matrix Switch combines video sharing and video splitter capabilities in one compact device! With one of these switches, you can share up to four video display devices between two computers. Intelligent functionality gives you the flexibility to use a broad range of video devices, from CRT and LCD monitors to new plasma TVs or video projectors.

    The switch works with VGA, SVGA, XGA, and multisync monitors, supports monitors up to 1920 x 1440 resolution, and is VESA DDC (DDC1, DDC2, DDC2B) compliant.

    This matrix switch also provides 250-MHz bandwidth for video clarity and integrity when connecting multiple video sources to multiple screens.

    What’s more, a built-in signal booster amplifies and extends video signals more than 200 feet—making the 2 x 4 Channel Video Matrix Switch great for remote display applications where you want to distribute images from a central secure room to public or non-secure areas.

    Cabling is easy. Just link an HD15 video cable between your computers’ VGA cards and the “Video In” ports on the switch. Run a separate HD15 cable from the “Video Out” ports to the monitors or other display devices.

    Front-panel push buttons enable you to configure the switch to receive the image from either PC.

    To cascade switches for an expanded setup, run a video cable from the “Video Out” port of one switch to the “Video In” port of the second switch.

    The 2 x 4 Channel Video Matrix Switch is also ideal for multimedia control rooms or stations, test bench facilities, classrooms, or distributing media from the data center. It's the logical choice for any digital signage application, including retail PoS setups or content distribution in educational institutions or medical facilities.

    Lightweight and easy to set up, it can also be used by demonstrators at trade shows or conferences to disseminate and present graphically rich content on multiple screens viewed by visitors. Even better, its heavy-duty cases can withstand the rigors of temporary installations requiring quick setups and teardowns.


    Technical Specifications for 2 x 4 Channel Video Matrix Switch:

    Distance (Maximum) — 213.2 ft. (65 m)
    Pixel Frequency — 250 MHz
    Resolution (Maximum) — 1920 x 1440 @ 60 Hz
    CE Approval — Yes
    Interface — VGA, SVGA, XGA, multisync
    Connectors — Input: (2) HD15 F;
    Output: (4) HD15 F
    Power — Adapter: 7.5 VAC, 800 mA
    Size — 1.7"H x 5.1"W x 3"D (4.3 x 13 x 7.6 cm)
    Weight — 1 lb. (0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 2 x 4 Channel Video Matrix Switch:

    Manuals

    • AC508A 2 In 4 Out AC509A 2 In 8 Out
      Installation/User (9/4/2012)
    • AC508A 2 In 4 Out AC509A 2 In 8 Out
      Installation/User (9/4/2012)

    Product Data Sheets

    Application Diagrams


    Connect your 2 x 4 Channel Video Matrix Switch with:

    Accessory: AC509A

    2 x 8 Channel Video Matrix Switch

    2 x 8 Channel Video Matrix Switch

    Accessory: EVNPS05-0003-FF

    Premium VGA Video Cable, PVC, 3-ft. (0.9-m)

    Premium VGA Video Extension Cable, Straight Hoods, Female/Female, 3-ft. (0.9-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $14.60

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $29.19
