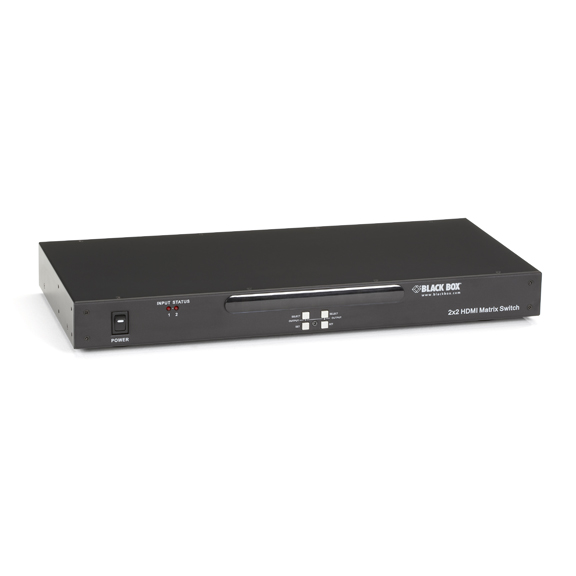

AVSW-HDMI2X2

Photo may show similar product

Other views

2 x 2 HDMI Matrix Switch

Easy matrix switching for two HDMI sources and two HDMI display devices.

AVSW-HDMI2X2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Switch audio and video of two sources to two displays in any combination.
  • Control from the front panel, with the included IR remote controller, or from an RS-232 console.
  • Boasts resolutions up to 1080p.

  • Description

    2 x 2 HDMI Matrix Switch


    Quick Facts

  • Switch audio and video of two sources to two displays in any combination.
  • Control from the front panel, with the included IR remote controller, or from an RS-232 console.
  • Boasts resolutions up to 1080p.

  • Further Details

  • HDMI 1.3 and HDCP compliant.
  • Works with all HDMI sources and displays—plus it's 3D capable.
  • Signal boosters on ports amplify HDMI signals up to 60 feet (18.2 m).
  • Supports the latest HDMI audio formats, including Dolby® TrueHD and DTS-HD.
  • Carries the high-speed digital video signaling of TMDS formats for the delivery of 12-bit Deep Color.
  • Ideal for corporate theaters, conference rooms, classroom and training facilities, and video broadcasting applications.
  • Rackmountable 1U-high unit with mounting ears.

    Featuring a maximum bandwidth of 6.75 Gbps, the 2 x 2 HDMI Matrix Switch from Black Box supports sharp, highly defined video in HD resolutions of up to 1080p.

    Any input can be routed to any output, or the same input can be routed to all outputs or any combination, eliminating the need to manually move various cables to display HDMI video from different sources on different screens. An input source LED tells you at a glance each output you've selected.

    The switch sets up in seconds and is easy to use. Control using front-panel buttons, the included IR remote controller, or an RS-232 connection linked to a Crestron, AMX, or Control4 system, or any third-party computerized software/hardware control system. The switch even comes with an RS-232 cable for quick setup.

    What's more, it features a IR signal extension port (and includes an IR extender receiver). Once plugged in, the receiver enables you to use the IR remote controller to switch ports on the unit from another room—as far as 984 feet (300 m) away.

  • Technical Specifications for 2 x 2 HDMI Matrix Switch:

    Bandwidth 6.75 Gbps (single-link)
    Resolutions Supported PC: Up to 1920 x 1200;
    HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
    CE Approval Yes
    RoHS Yes
    Connectors Input: (2) HDMI F;
    Output: (2) HDMI F;
    Control/command port: (1) DB9 F (RS-232)
    Power Input: 100-230-VAC, 50-60 Hz, autosensing;
    Output: 5 VDC
    Size 1.9"H (1U) x 17.3"W x 8.5"D (4.8 x 43.9 x 22 cm)
    Weight 7.5 lb. (3.4 kg)

    NOTE: When connecting outputs to both displays and AV receivers, the audio output will only be stereo because of the limitations of the display. In addition, the switch will determine the resolution of all connected displays and output the resolution of the lowest display. For example: If you have both a 1080p LCD and a 720p LCD connected, the output to both will be 720p.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
