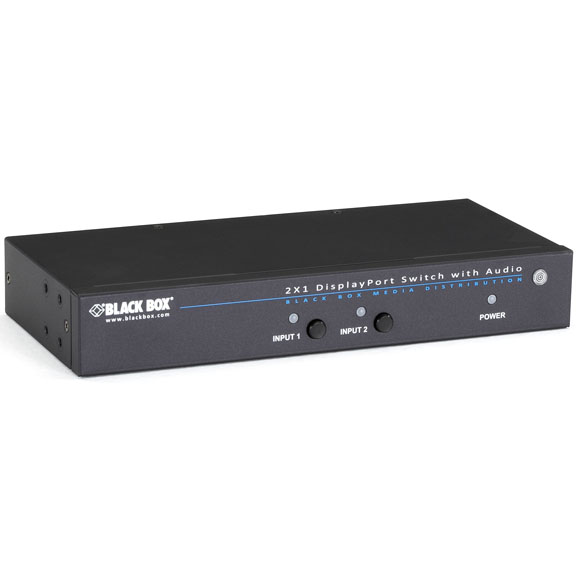

2 x 1 DisplayPort Switch with Serial and 3.5-mm Audio

Switch two DisplayPort sources to a single DisplayPort display along with audio.

AVSW-DP2X1A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Switch between two DisplayPort sources for output on a high-resolution DisplayPort display.
  • Control using front-panel pushbuttons, an IR remote controller, or via a serial connection.
  • Boasts HD resolutions up to 1080p.


  • Further Details

  • DisplayPort 1.1 compatible and HDCP 1.1 compliant* for protected content.
  • LEDs indicate which AV equipment source is being displayed.
  • Connect to PCs, consumer electronics devices, and displays with DisplayPort connectors.
  • Plug and play. No software required for operation.
  • Ideal for conference rooms, classrooms, and multimedia workstations.
  • Eliminates need to manually switch DisplayPort cables between sources.
  • DisplayPort ports transmit both audio and video simultaneously, but it also has separate 3.5-mm audio connectors.
  • Serial port enables control through a PC, serial controller device, or home theater system, integrating the entire AV environment.
  • Control with IR remote from up to 15 feet (5 m) away. To choose your source device, simply press a number button.
  • DisplayPort features locking connectors for more secure inputs/outputs—great for areas prone to accidental unplugging of AV equipment.

    * HDCP content displays on the selected source only; rebooting may be necessary when switching between HDCP content sources.


  • Resolution (Maximum) Full HD (1920 x 1080)
    CE Approval Yes
    RoHS Yes
    Connectors Input: (2) DisplayPort 1.1 F; (2) 3.5-mm audio jacks; (1) 2.5-mm serial jack;
    Output: (1) DisplayPort 1.1 F; (1) 3.5-mm audio jack
    Power External: Input: 100-240 VAC, 50-60 Hz;
    Output: 12 VDC, 1.5 A (max.)
    Size 1.4"H x 8.7"W x 3.9"D (3.6 x 22.1 x 10 cm)
    Weight 1.4 lb. (0.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The 2 x 1 DisplayPort Switch with Serial and 3.5-mm Audio comes with a standard 3 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    2 x 1 DisplayPort Switch AVSW-DP2X1 $99.95

    4 x 1 DisplayPort Switch with Serial and Audio AVSW-DP4X1A $201.95
