Datacom > Switches

click photo to enlarge

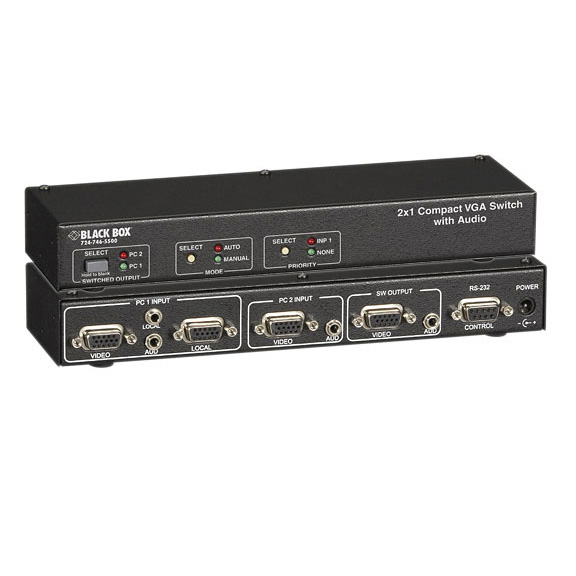

AC505A-2A-R2

Photo may show similar product

Other views

2 x 1 Compact VGA Switch with Audio

Switch two VGA video sources—and even audio—to a single monitor.

AC505A-2A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enables a single monitor with audio to be switched between two video/audio sources.
  • Supports video cable distances up to 150 feet (45.7 m) and 1600 x 1200 resolution—plus audio.
  • Control manually by pushing a button or via an RS-232 control device (serial cable is included).
  • Or set it up to cycle between video sources automatically.

  • Description

    2 x 1 Compact VGA Switch with Audio


    Quick Facts

  • Enables a single monitor with audio to be switched between two video/audio sources.
  • Supports video cable distances up to 150 feet (45.7 m) and 1600 x 1200 resolution—plus audio.
  • Control manually by pushing a button or via an RS-232 control device (serial cable is included).
  • Or set it up to cycle between video sources automatically.

  • Further Details

  • Buffered video output protects the signal integrity.
  • Front-panel lockout helps to prevent accidental or intentional setting changes.
  • You can also blank and unblank an output via a serial port command.
  • LED indicates selected input source.
  • Fits into tight spaces and withstands heavy use.
  • Features an RFI-shielded steel enclosure.

  • The 2 x 1 Compact VGA Switch with Audio from Black Box goes much farther than ordinary video switches in both the distance and resolution it supports.

    This solid-state, electronic switch not only uses boosters to drive VGA video signals up to 150 feet (45.7 m), it also offers a crisp resolution of up to 1600 x 1200.

    Use the switch, for instance, in a conference room where two laptop users can take turns projecting their screen images onto a single big-screen VGA monitor seen by all. It’s also useful anywhere you need to use fewer monitors for displaying video sources.

    Control switching via an attached RS-232 device (serial control cable is included), or set it up to scan between VGA inputs at certain time intervals or display VGA inputs based on their priority. The switch enables you to set priority on either input when both inputs are active when it’s set up to scan ports in Auto mode. If you set priority on the second input, for instance, and someone plugs a device into that port, it’ll switch automatically to that port.

    You can also blank output from one source or switch manually.


    What’s included:
  • 2 x 1 Compact VGA Switch with Audio
  • Serial cable
  • User’s manual

  • This product works with:
  • Premium VGA Video Extension Cable (EVNPS05)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for 2 x 1 Compact VGA Switch with Audio:

    Distance (Maximum) — 150 ft. (45.7 m) at XGA
    Resolution (Maximum) — 1600 x 1200
    Video Bandwidth — 200 MHz
    Video Level — 0 to 0.7 V p-p
    CE Approval — Yes
    Connectors — Video input: (2) HD15 F;
    Video output: (1) HD15 F;
    Serial: (1) DB9 F (RS-232);
    Audio input: (2) 3.5-mm mini stereo;
    Audio output: (1) 3.5-mm mini stereo
    Power — Input: 120 VAC, 60 Hz;
    Output: 12 VDC at 300 mA center positive
    Size — 1.7"H x 8.4"W x 2.7"D (4.3 x 21.3 x 6.9 cm)
    This product works with:
  • Premium VGA Video Extension Cable (EVNPS05)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
