SW459A-ST

Photo may show similar product

Other views

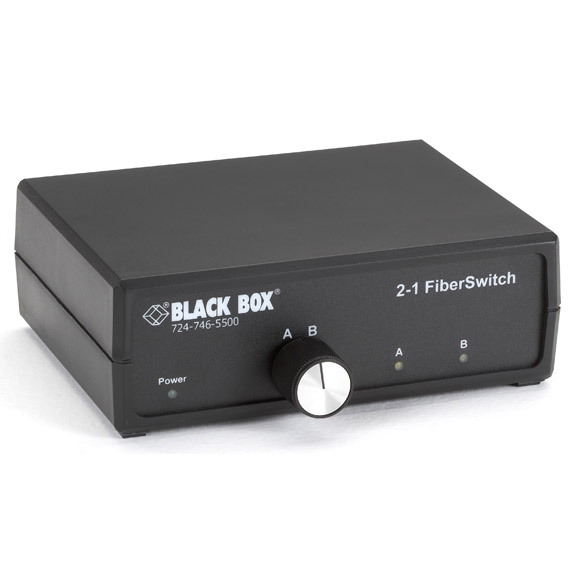

2-to-1 Fiber Switch, ST

The simple fiber switch for Fast Ethernet, FDDI, ATM, and more!

SW459A-ST

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • Switch between two fiber optic links while providing complete separation between them.
  • Full compliance with optical standards for Fast Ethernet, FDDI, and ATM.
  • Integral fiber transceivers support distances of 2000 meters over 1300-nm multimode fiber.

  • Description

    2-to-1 Fiber Switch, ST


    Quick Facts

  • Switch between two fiber optic links while providing complete separation between them.
  • Full compliance with optical standards for Fast Ethernet, FDDI, and ATM.
  • Integral fiber transceivers support distances of 2000 meters over 1300-nm multimode fiber.

  • Further Details

  • Ideal for switching to backup network connections.
  • Choose from duplex ST or duplex SC connectors.

    Sometimes you need a simple solution. The 2-to-1 Fiber Switch operates just like a simple manual AB switch—just turn the rotary knob to switch from one line to the other.

    What makes this switch special is that it supports multimode fiber optic connections—even high-speed fiber connections such as Fast Ethernet, FDDI, and 100-Mbps ATM. This means you can use it for network applications, including:
    — Physically isolating network segments.
    — Manually switching to backup resources or rerouting traffic when a network segment goes down.
    — Using it to enable a single PC to access both a public and a private network. Because the networks are kept separate from each other, the private network stays private.

    Because the 2-to-1 Fiber Switch has integrated fiber transceivers, you can also use it as a repeater to add up to 2000 meters (6561.7 ft.) to your network.

    LEDs provide visual confirmation of network segment connection.

    This product works with:
    • Ceramic Terminated Multimode Fiber Optic Cable, ST–ST (EFN062-CC)
    • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN4025)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for 2-to-1 Fiber Switch, ST:

    Operating Environment Temperature: 32 to 158° F (0 to 70° C);
    Humidity: Up to 95% noncondensing
    Speeds Supported 10-100-Mbps Ethernet; 100-Mbps FDDI; 100-Mbps ATM
    Interface 1300-nm duplex multimode fiber optic cable
    Connectors (3) pairs of ST
    Indicators LEDs: (1) Power; (2) showing selected fiber segment A or B
    Power 100-240 VAC, 47-63 Hz, external power supply
    Size 2.3"H x 6.5"W x 5"D (5.8 x 16.5 x 12.7 cm)
    Weight 1.3 lb. (0.6 kg)
    This product works with:
    • Ceramic Terminated Multimode Fiber Optic Cable, ST–ST (EFN062-CC)
    • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN4025)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
