Datacom > Switches

click photo to enlarge

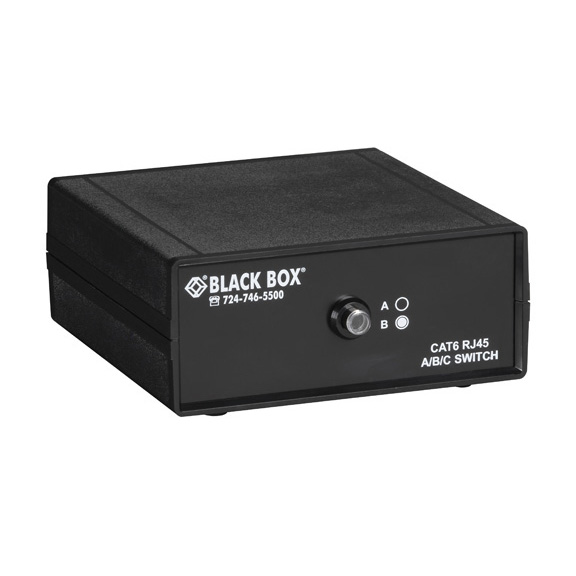

SW1030A

Photo may show similar product

Other views

2-to-1 CAT6 10-GbE Manual Switch (ABC)

Securely access two high-speed, 10-GbE networks!

SW1030A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Switch between two separate Ethernet networks from one PC without the need to plug and unplug cables.

  • Description

    2-to-1 CAT6 10-GbE Manual Switch (ABC)


    Quick Facts

  • Switch between two separate Ethernet networks from one PC without the need to plug and unplug cables.

  • Further Details

  • Provides total electrical isolation, so you can safely access secure and public networks from the same desktop.
  • Use in networks from 10BASE-T all the way up to 10-Gigabit Ethernet (10-GbE).
  • Proprietary design ensures crosstalk isolation for high-end performance and full 10-GbE support.
  • Simply connect your host device (or shared network link) to Port C (Common port), then connect the different networks or Ethernet devices to the A and B ports.
  • Operates manually. Just push a button to switch to another network.
  • No power required.

  • Great for high-bandwidth network switching, this desktop device enables you to switch between wire-speed networks at the push of a button—and do so securely.


    Technical Specifications for 2-to-1 CAT6 10-GbE Manual Switch (ABC):

    CE Certified — Yes
    MTBF — 100,000 cycles
    Connectors — (3) RJ-45
    Operating Temperature — 32 to 158º F (0 to 70º C)
    Power — None
    Size — 2.75"H x 6.1"W x 6.5"D (7 x 15.5 x 16.5 cm)
    Weight — 2 lb. (0.9 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 2-to-1 CAT6 10-GbE Manual Switch (ABC):


    Connect your 2-to-1 CAT6 10-GbE Manual Switch (ABC) with:

    Accessory: EYN10G10A-1000

    10-Gigabit CAT6a Solid Bulk Cable (UTP), Blue

    10-Gigabit CAT6a Solid Bulk Cable (UTP) 4-Pair, 1000-ft. (304.8-m), PVC, Riser, Blue

    Accessory: EVNSL6A-003

    10-Gigabit CAT6a Patch Cable (UTP), 3-ft. (0.9-m)

    10-Gigabit CAT6a Patch Cable (UTP), 3-ft. (0.9-m)
