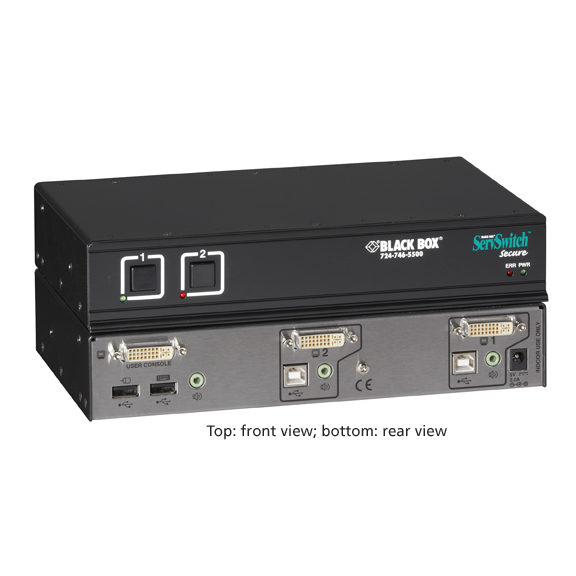

click photo to enlarge

SW2007A-USB

Photo may show similar product

Other views

2-Port ServSwitch Secure with USB

KVM switch for safe switching between secure and unsecure computers.

SW2007A-USB

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • High levels of port isolation prevent data leakage.
  • DVI resolution.
  • Secure switching between computers with USB, DVI-I, and audio connections.

  • Description

    2-Port ServSwitch Secure with USB


    Quick Facts

  • High levels of port isolation prevent data leakage.
  • DVI resolution.
  • Secure switching between computers with USB, DVI-I, and audio connections.

  • Further Details

  • All microprocessors are One Time Programmable (OTP) with no flash ROM.
  • Shielded, secure metal casing is electrically bonded to ensure low electromagnetic emissions for minimized snooping risks.
  • Unidirectional keyboard and mouse signaling thwarts hacking via timing analysis, USB common storage Trojans, keyboard light emissions snooping, and forced malfunctions.
  • Unexpected operations (signaled by the ERR indicator) cause channel isolation and require you to find the fault and reboot the unit.
  • USB keyboard and mouse connections produce substantially less radiated emissions than PS/2® ones do, making it difficult to snoop data transmissions.
  • Keyboard and mouse power down and reset between each switchover to clear memory buffers.
  • Each USB port is powered independently—shorting the supply on one port doesn't switch off power to other ports.
  • Unidirectional keyboard and mouse signaling via data diodes ensures USB data cannot leak back through the switch. It also thwarts hacking via timing analysis, USB common storage Trojans, and forced overload malfunction mechanisms.
  • Digital DVI-I video provides even greater security. Its signals are differential, DC balanced, and encoded.
  • DVI-I video also provides exact video quality and is backwards compatible with analog VGA equipment.
  • True DDC video support. For highly secure installations, DDC data can be bypassed or disabled.
  • Tamper evident seals and screws.
  • Clear stereo audio switching circuit for speaker connections eliminates interference and crackle.

  • NOTE: NSA tested and TEMPEST approved for, and by, the U.S. Air Force.


    Technical Specifications for 2-Port ServSwitch Secure with USB:

    Distance Cable length: 10 ft. (3 m) maximum
    Resolution Digital: 165 MHz maximum per DVI link, dual-link DVI supported;
    Analog: 1920 x 1280 maximum
    Connectors CPU: (2) DVI-I F, (2) USB Type B F, (2) 3.5-mm audio jacks;
    User: (1) DVI-I F, (2) USB Type A F, (1) 3.5-mm audio jacks;
    Power: (1) 2.5-mm barrel F;
    Indicators LEDs: (1) Power, (1) Error, (1) CPU Selected per port
    Power 100-240 VAC, 50-60 Hz, external
    Dimensions 1.75"H (1U) x 9.1"W x 5.6"D (4.4 x 23.1 x 14.2 cm)

    NOTE: NSA tested and TEMPEST approved for, and by, the U.S. Air Force.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
