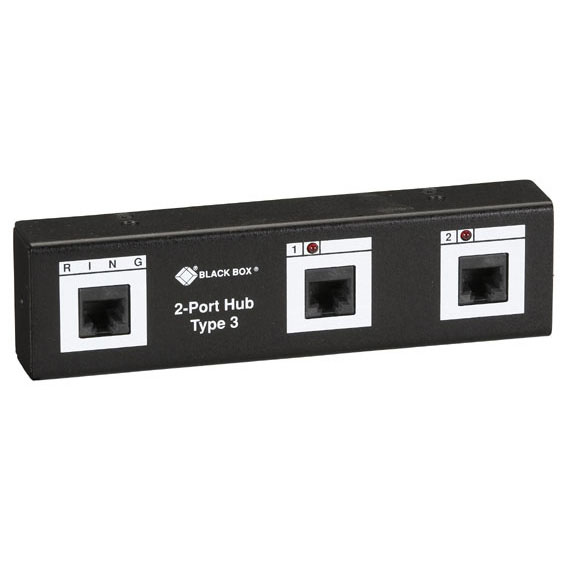

2-Port Hub, Type 3 Unshielded

Need more workstations? No more MAU ports available? Use our 2-Port Hub!

LT7001A

1 YEAR DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Use inexpensive UTP cable.
  • Connect two workstations to one lobe.
  • No extra MAU port needed.


  • Further Details

  • Hot-swappable. No downtime.
  • Nonpowered.

    Add two Token Ring workstations even if an extra MAU port is unavailable. This hub makes Token Ring expansion fast and easy!

    Use a 2-Port Hub to double a single lobe’s capacity, and you can add or remove workstations from the network without any downtime. This means you can operate your LAN without the extra MAU—or extra expense—of a backup ring.

    Just use a patch cable to connect the 2-Port Hub's ring port to your existing Token Ring outlet. Then connect two workstations to Ports 1 and 2 of the hub. You don't even need to plug it into a power outlet because it's a passive, nonpowered device.

    The 2-Port Hub supports Type 3 Token Ring and has unshielded RJ-45 connections for Type 3 unshielded twisted-pair cable, or shielded RJ-45 connections for Type 3 shielded twisted-pair cable.

  • Relay Tool Required Yes
    Speed 16 or 4 Mbps
    Connectors LT7001A: (3) Unshielded RJ-45;
    LT7002A: (3) Shielded RJ-45
    Indicators LEDs: (2) Port Status (1 per port)
    Power Nonpowered
    Size 1.8"H x 6.5"W x 1"D (4.6 x 16.5 x 2.5 cm)
    Weight 0.5 lb. (0.2 kg)

    This product works with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
