Networking > Terminal Servers

click photo to enlarge

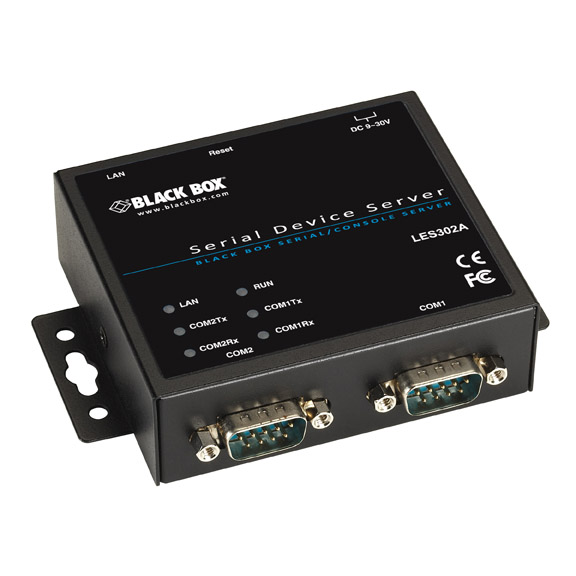

LES302A

Photo may show similar product

Other views

  • LES302A
  • LES302A

2-Port 10/100 Device Server, RS-232/422/485, DB9 M

Access two serial RS-232 or RS-422/485 devices over a 10- or 100-Mbps network.

LES302A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • An easy way to remotely monitor, manage, and control your industrial devices in the field.
  • Easy to configure through a Web browser, serial console, Telnet™, or Windows® utility.
  • Very compact.
  • Accepts 12-VDC power. Order the 100–240-VAC/12-VDC power supply (PS012B) separately or order this device server together with a power supply as a kit (LES302A-KIT).


    • Description

    2-Port 10/100 Device Server, RS-232/422/485, DB9 M


    Quick Facts

  • An easy way to remotely monitor, manage, and control your industrial devices in the field.
  • Easy to configure through a Web browser, serial console, Telnet™, or Windows® utility.
  • Very compact.
  • Accepts 12-VDC power. Order the 100–240-VAC/12-VDC power supply (PS012B) separately or order this device server together with a power supply as a kit (LES302A-KIT).

    • Further Details

  • Features TCP server/client, UDP, virtual COM, and tunneling modes.
  • Software-selectable RS-232/485/422 serial data communications.
  • Ideal for controlling manufacturing or automation devices over a LAN.
  • Auto MDI/MDI-X Ethernet port. Autonegotiates, autodetects for 10 or 100 Mbps.
  • Rugged, metal case that can be wall or DIN rail mounted (mounts included).
  • Firmware can be upgraded over an Ethernet network from a remote PC.
  • On serial side, features 15-kV ESD protection.

    Use your Ethernet network to reliably access remote RS-232 devices or RS-422/-485 industrial equipment from a remote workstation.

    The 2-Port 10/100 Device Server gives you a cost-effective gateway for TCP/IP Ethernet and serial signal communications, enabling nearly any serial devices to be connected to a new or existing Ethernet network.

    It does this by encapsulating serial data and transporting it over Ethernet, communicating full-duplex and transmitting bidirectional data transparently between the serial port and a network.

    Plus, it’s easy to configure. You can do this remotely over the Ethernet link using Telnet, a Web browser link, a serial console, or another Windows utility.

    Even better, it comes with virtual communications software. Through it, you can use an existing Windows based application to access a serial device by mapping the virtual COM port to a remote serial server over Ethernet.

    In addition, the device server supports TCP server, TCP client, and UDP modes of communication, and serial tunneling, which you can use to send data between two serial devices via the TCP/IP link instead of RS-232, -485, or -422 connections. Link a touchscreen to a distant PLC over the Ethernet network, for instance. (NOTE: Multiple units needed for TCP client and tunneling modes.)

    Ideal for any manufacturing, process engineering, or automation application, the 1-Port 10/100 Device Server, RS-232/422/485 can also be used to communicate with bar-code scanners, terminals, PLCs, electronic Kanban inventory management devices, and similar equipment on the factory floor.



    • Technical Specifications for 2-Port 10/100 Device Server, RS-232/422/485, DB9 M:


    Environmental — Operating temperature: 32 to 140° F (10 to 60° C)
    Ethernet Interface — 10 or 100 Mbps
    Serial Baud Rate — 1200 bps to 230 kbps
    Serial Data Bits — 7, 8
    Serial Data Parity — None, Odd, Even, Mark, Space
    Serial ESD Protection — 15 kV
    Serial Flow Control — None; Software: X-ON/X-OFF;
    Hardware: RTS/CTS
    Serial Stop Bits — 1, 2
    Software Support Protocols — ICMP, TCP (UDP)/IP, DHCP client, SNMP, HTTP, Telnet
    Standard — IEEE 802.3
    CE Approval — Yes
    RoHS — Yes
    Power — 9–30 VDC from separate AC power supply (not included);
    Consumption: 1.5 watts (maximum)
    Connectors — Serial: (2) DB9 M (RS-232/422/485 software selectable);
    Ethernet: (1) RJ-45 (10BASE-TX/100BASE-T)
    Size — 1.1"H x 3"W x 3.4"D (2.8 x 7.6 x 8.6 cm)

    This product also works with:
    • DIN Rail Power Supply, 10 Watts, 12 VDC (MDR-10-12)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 2-Port 10/100 Device Server, RS-232/422/485, DB9 M:

    Manuals

    • 2-Port 10/100 Device Server, RS-232/422/485 DB9 M
      (Version 1)
      httpftp

    Quick Start Guides

    • 2-Port 10/100 Device Server, RS-232/422/485 DB9 M
      (Version 1)
      httpftp

    Black Box Explains


    Connect your 2-Port 10/100 Device Server, RS-232/422/485, DB9 M with:

    Accessory: MDR-10-12

    DIN Rail Power Supply, 10 Watts, 12 VDC
