Video & Multimedia > Splitters

click photo to enlarge

AC074A-R3

Photo may show similar product

Other views

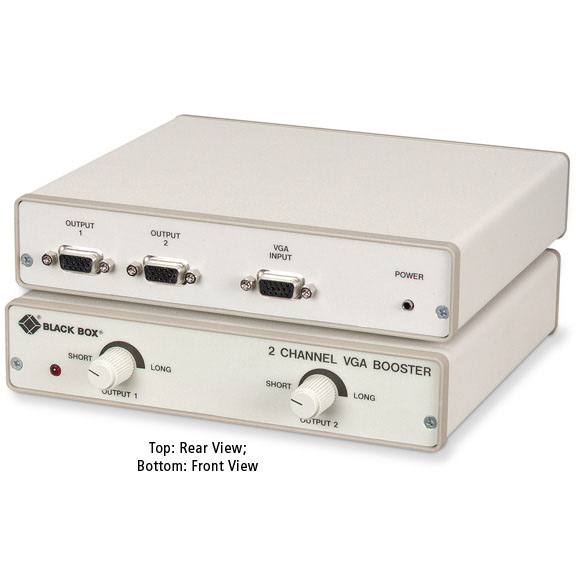

2-Channel VGA Booster

Picture this: great video at great distances.

AC074A-R3

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Send clear video up to 700 feet (213.3 m) away.
  • Display video on two remote monitors simultaneously.
  • Protect your CPU by securing it out of view and out of industrial environments.

  • Description

    2-Channel VGA Booster


    Quick Facts

  • Send clear video up to 700 feet (213.3 m) away.
  • Display video on two remote monitors simultaneously.
  • Protect your CPU by securing it out of view and out of industrial environments.

  • Further Details

  • Add video splitters for up to 20 monitor outputs.
  • Use different lengths of cable for each monitor.
  • Save money with our simplified cabling system.
  • Includes a cable to connect your CPU to the booster.

  • Use the 2-Channel VGA Booster and put two color monitors where you want them. Then you can keep your CPUs in a safe, clean, central location for easy access—and away from prying fingers and dusty, industrial environments.

    You can send VGA signals up to 700 feet (213.3 m) to each monitor. At 800 x 600 resolution, the booster extends XGA® and Super VGA signals 600 feet (182.8 m). At 1024 x 768 resolution, your distance limit is 500 feet (152.4 m). Because the outputs operate independently, you can use different cable lengths for each monitor. Just turn the two front-panel knobs to choose the cable length you need for each monitor.

    The booster’s advanced circuitry also ensures that your VGA signal will be free of distortion, giving you clear, crisp images on your monitors. Plus, the circuitry reduces the number of connector wires required, so you save more money by using less cable.

    The 2-Channel VGA Booster is plug-and-play easy—just plug in the cables and go.


    Technical Specifications for 2-Channel VGA Booster:

    Interface — VGA, Super VGA, XGA
    Connectors — (3) HD15 F
    Power — 120–230 VAC, 50–60 Hz, autosensing
    Size — 1.5"H x 7.3"W x 6.3"D (3.8 x 18.5 x 16 cm)
    Weight — 1.5 lb. (0.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 2-Channel VGA Booster:

    Product Data Sheets

    Application Diagrams


    Connect your 2-Channel VGA Booster with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $48.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $95.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $479.95

    Quantity

    Warranty

    Total

    In Stock

    Shipping Info

    In Stock - orders received before 8PM ET ship same day


    45-day return policy
