Video & Multimedia > Switches

click photo to enlarge

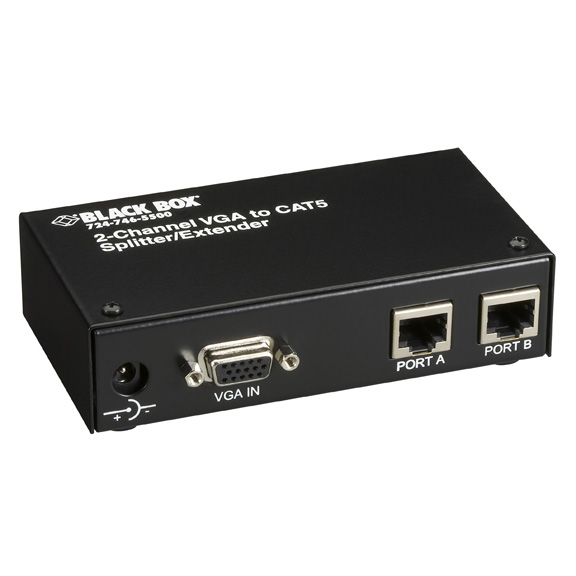

AC600A

Photo may show similar product

Other views

2-Channel Mini CAT5 VGA Splitter/Extender Transmitter with Local Port

Send VGA video signals over CAT5 UTP to two monitors.

AC600A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Send video up to 500 feet (152.4 m) over ordinary CAT5 cable.
  • Eliminates the need for bulky VGA cables.
  • Buffers and boosts signals for a clear video image.
  • Monitor the system locally.

  • Description

    2-Channel Mini CAT5 VGA Splitter/Extender Transmitter with Local Port


    Quick Facts

  • Send video up to 500 feet (152.4 m) over ordinary CAT5 cable.
  • Eliminates the need for bulky VGA cables.
  • Buffers and boosts signals for a clear video image.
  • Monitor the system locally.

  • Further Details

    This splitter/extender transmitter sends VGA signals over CAT5 UTP to receivers attached to two monitors. The 2-channel transmitter sends video to two remote displays. Even better, a second VGA connection enables you to connect a local monitor.

    For each remote display, order a separate Mini CAT5 VGA Receiver (AC602A). In most setups, the Mini CAT5 Splitter/Extender requires a power supply at its end only to power a link to all connected receivers. (However, for CAT5 runs of more than 300 feet, the receivers require their own power supply.)

    The transmitter amplifies the signal for clean and crisp transmission, and differential signaling eliminates ground loops and noise. In the transmission, there's little or no degradation of video quality, and the transmitter handles resolutions up to 1600 x 1200 at any refresh rate, working with VGA, SVGA, XGA, and UXGA video.

    You can also transport and install all extenders in the family with ease. Rugged and reliable, the extender units feature a compact plastic enclosure that can withstand the daily grind and frequent cable changes.

    What's included:
  • (1) transmitter
  • (1) VGA cable, male/male
  • (1) power supply


  • Technical Specifications for 2-Channel Mini CAT5 VGA Splitter/Extender Transmitter with Local Port:

    Distance (Maximum) 500 ft. (152.4 m)
    Resolution (Maximum) 1600 x 1200 at 300 ft. (91.4 m) or 1280 x 1024 at 500 ft. (152.4 m)
    CE Approval Yes
    Connectors Video input: (1) HD15 F;
    Local monitor: (1) HD15 F;
    Interconnect: (2) shielded RJ-45
    Power 100-240 VAC, 50-60 Hz, autosensing
    Size 1.2"H x 4.9"W x 2.6"D (3 x 12.4 x 6.6 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 2-Channel Mini CAT5 VGA Splitter/Extender Transmitter with Local Port:

    Manuals

    • VGA To CAT5 Video Splitter and Receiver
      Installation and User Guide

    Product Data Sheets

    Application Diagrams
