KVM > Server Room/Enterprise KVM

click photo to enlarge

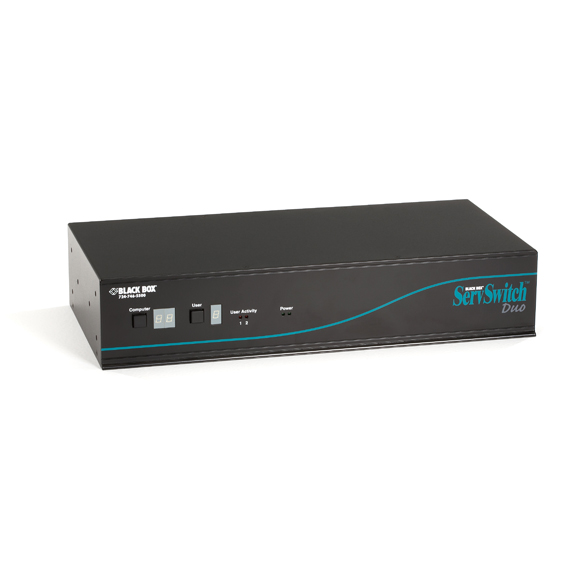

KV6116FA-R2

Photo may show similar product

Other views

16-Port ServSwitch Duo KVM Switch

Give 2 users access to up to 16 servers with this multiplatform KVM switch.

KV6116FA-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • You can daisychain this easy-to-use KVM switch to control hundreds of servers!
  • 1920 x 1280 at 75 Hz maximum resolution.
  • Supports DDC
  • Switch ports by hotkeys, on-screen display (OSD), front-panel buttons, or mouse.
  • Great for data centers.

  • Description

    16-Port ServSwitch Duo KVM Switch


    Quick Facts

  • You can daisychain this easy-to-use KVM switch to control hundreds of servers!
  • 1920 x 1280 at 75 Hz maximum resolution.
  • Supports DDC
  • Switch ports by hotkeys, on-screen display (OSD), front-panel buttons, or mouse.
  • Great for data centers.

  • Further Details

  • Provides multiplatform support for Sun®, Mac®, blade, and USB-style servers.
  • Optional Duo Extenders give you access to user stations up to 656.1 feet (200 m) away.
  • Flash upgradable via the serial port.
  • High-quality video resolution.
  • Password security.
  • On-screen menus for easy switching.
  • Cascadable to support more servers.
  • Switch ports via on-screen menus, a three-button mouse, an IntelliMouse®, hotkey sequences, or the front-panel push buttons.


  • Growth potential.
    Using ServSwitch Duo Switch, 2 users can access 16 servers.

    Get some distance.
    The ServSwitch Duo has a built-in local extender, so if you want to connect a keyboard, monitor, and mouse up to 656.1 feet (200 m) away, just order the Receiver (Remote) Module (ACU5011A). The ServSwitch Duo has one RJ-45 port. Both the local and remote ports share server access on a timeout basis.

    Up-front and personal switching.
    On-screen menus make these switches exceptionally easy to use. The menus pop up on demand and make it simple to select a server. Give each server a name that makes sense to you. No software is required on your servers because their names are stored in the switches’ memory. You can also switch between servers via on-screen menus, a three-button mouse, an IntelliMouse, hotkey sequences, or the front-panel push buttons.

    Good in crowds, and very friendly.
    This switch handles large installations, too. Daisychain it to control hundreds of servers!

    Compatibility is no problem either. It supports a wide range of PC-compatible hardware and software platforms, including some high-end IBM® PS/2 compatible computers such as IBM RS/6000®, Compaq®, Alpha®, and SGI®.

    The ServSwitch Duo works with PC/AT serial and PS/2 mice and keyboards. Automatic mouse conversion means it works with all PS/2, IntelliMouse, and RS-232 mice. You can even mix both styles in one installation. Sun compatibility is available using EHN428 for USB and EHN429 for legacy support.

    For connecting remotely to your server room over IP, add the ServSwitch Wizard IP (ACR2004A) (see Related Products) to control PC, Sun, and Mac servers.

    Keep an eye on your servers.
    Monitor all connected servers with autoscan. You can also scan only active servers attached to one chassis or selected servers attached to any chassis in your system. Program your preferred scan rate and view each server at your own pace.

    More good stuff.
    Standard connectors enable the use of ordinary PC cables for close connections of only a few feet. If you want more robust signaling and ease of use, we recommend our economical Control Station Cables.

    The ServSwitch Duo supports PC keyboard modes 1, 2, and 3, making them compatible with all PC/AT® and PS/2® style keyboards.

    Use the on-screen menus to control who can access each server. Set a user's level of access to exclusive use, shared use, or video only.

    This product works with:
  • Computer Cables for Standard KVM Connections (EHN408)
  • Control Station Cables (EHN409)
  • PS/2 to USB Flash Cables (EHN428)
  • PS/2 to Sun Flash Cables (EHN429)
  • ServSwitch Wizard™ IP (ACR2004A)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking on “Talk to a Tech.”

  • Technical Specifications for 16-Port ServSwitch Duo KVM Switch:

    Controls — On-screen menus;
    Keyboard commands;
    Mouse-click functions: (2) push buttons for user and server selection;
    (1) DIP switch for firmware upgrade
    Distance (Maximum) — User ports to any directly attached user station or KVM switch: 32.8 ft. (10 m);
    Server ports to directly attached server or KVM switch: 100 ft. (30.4 m) using EHN408;
    ServSwitch Duo: User port #1 of the Duo or user port #1 or #3 of a Duo Extender: 656.1 ft. (200 m);
    Server ports to any directly attached CPU or KVM switch: 35 ft. (10.6 m) using EHN428–EHN429
    Resolution (Maximum) — 1900 x 1280 at 75 Hz
    Serial Characteristics — Protocol: RS-232 async;
    Data rate: Up to 19.2 kbps;
    Data format: 8 data bits, no parity, 1 stop bit;
    Flow control: None (but DTR, DSR, CTS all held high)
    CE Approval — Yes
    Interface — Video: VGA (including SVGA, XGA, and VESA DDC support); DDC 1 and DDC 2 signaling;
    Keyboard and mouse: IBM PS/2 compatible; also supports PC/AT style keyboards or server keyboard ports and serial server mouse ports with adapters;
    Serial: Subset of TIA-574 (IBM PC DB9) pinout of TIA/EIA RS-232; USB and Sun with appropriate converter cables
    Connectors — Power: (2) barrel jacks
    Serial: (1) DB9 F serial port for flash upgrade;
    User ports: (2), each consisting of: (1) HD15 F for monitor, (2) 6-pin mini DIN F for keyboard and mouse;
    Remote user ports: (1), consisting of: (1) RJ-45 for Duo Extender attachment;
    Server: Duo has (4), (8), (12), or (16), each consisting of: (1) HD15 F for video-port attachment, (2) 6-pin mini DIN F for keyboard and mouse
    Power — External 100–150; 240 VAC, 50–60 Hz, autosensing
    Size — 3.5"H (2U) x 17.3"W x 8.7"D (8.9 x 43.9 x 22.1 cm)
    This product works with:
  • Computer Cables for Standard KVM Connections (EHN408)
  • Control Station Cables (EHN409)
  • PS/2 to USB Flash Cables (EHN428)
  • PS/2 to Sun Flash Cables (EHN429)
  • ServSwitch Wizard™ IP (ACR2004A)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking on “Talk to a Tech.”
