Networking > Extenders

click photo to enlarge

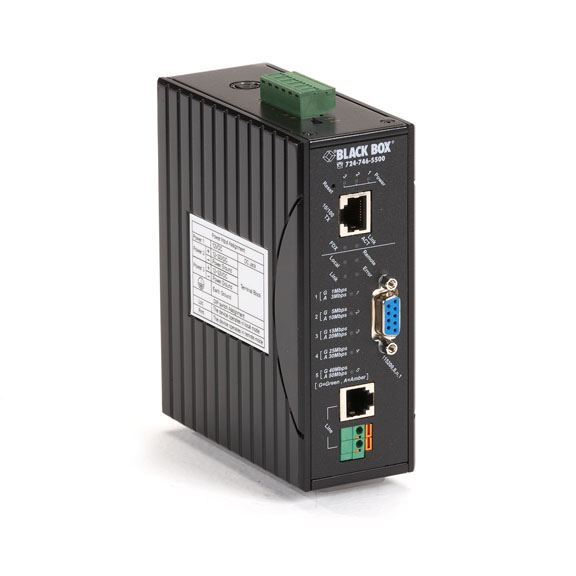

LBM303A

Photo may show similar product

Other views

  • LBM303A
  • LBM303A

10BASE-T/100BASE-TX Hardened Managed Ethernet Extender

Extend Ethernet over voice-grade wiring even in harsh environments.

LBM303A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extends 10- or 100-Mbps Ethernet up to 1.2 miles (2 km).
  • For use at more extreme temperatures, from -40 to +167° F.
  • Embedded Web server enables you to manage the extender remotely via any standard Web browser.


    • Description

    10BASE-T/100BASE-TX Hardened Managed Ethernet Extender


    Quick Facts

  • Extends 10- or 100-Mbps Ethernet up to 1.2 miles (2 km).
  • For use at more extreme temperatures, from -40 to +167° F.
  • Embedded Web server enables you to manage the extender remotely via any standard Web browser.

    • Further Details

  • Simple plug-and-play installation.
  • Saves wiring costs by using voice-grade copper wire—even phone wire you already have installed.
  • Uses symmetrical vDSL for speeds of up to 30 Mbps.
  • Transparent to network protocols.
  • Eight speeds with easy-to-read speed indicator LEDs on top of the extender.
  • Auto MDI/MDI-X on the Ethernet ports.
  • Autosensing for Ethernet speed and duplex.

  • Hot swap extender without powering down.
  • A switch configure the extender for local (CO) or remote (CP) use.

    The 10BASE-T/100BASE-TX Hardened Managed Ethernet Extender uses vDSL to provide an easy, inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Use the Hardened Extender for harsh environments and extended temperature ranges. Because you use your existing copper infrastructure, you save on cabling costs.

    Easy setup
    Just plug a hardened extender into each end of your copper wire and use simple DIP switches to set one unit as local (CO) and the other as remote (CP). Configure and manage the extender through any Web browser.

    The extender is transparent to upper level protocols such as TCP/IP, and there's never any software to install. Plus, the RJ-45 port autosenses speed and duplex, and it features MDI/MDI-X, so your Ethernet is virturally foolproof!

    Standalone or rackmount
    You can use this compact extender as a desktop or a wallmount standalone unit.

    NOTE: Must be used in pairs.

    This product works with:
  • External 100–240-VAC Power Adapters (PS002A–PS003A)
  • DIN Mount Power Supplies (PSD012, PSD014)
    • Questions? Contact our FREE Tech Support.


    Technical Specifications for 10BASE-T/100BASE-TX Hardened Managed Ethernet Extender:

    Environmental — Operating Temperature: -40 to +167° F (-40 to +75° C)
    CE Approval — Yes
    Connectors — (1) RJ-11, (1) RJ-45
    Indicators — LEDs: (1) Power;
    (4) Speed;
    (1) Ethernet Link/Activity;
    (1) Ethernet Full Duplex;
    (1) VDSL Error;
    (1) VDSL Link;
    (1) VDSL Local;
    (1) VDSL Remote
    Power < Power supply sold separately:
    PS002A: 100–240, 50–60 Hz VAC input to 12 VDC output, barrel jack;
    PS003A: 100–240, 50–60 Hz VAC input to 12 VDC output, stripped ends for use with terminal block;
    PSD012: 100–240, 50–60 Hz VAC input to 24 VDC output, DIN-rail mount
    PSD014: 100–240, 50–60 Hz VAC input to 48 VDC output, DIN-rail mount
    Size — 2"H x 5.3"W x 4.3"D (5.1 x 13.5 x 10.2 cm)
    Weight — 1.8 lb. (0.8 kg)
    NOTE: Must be used in pairs.

    This product works with:
  • External 100–240-VAC Power Adapters (PS002A–PS003A)
  • DIN Mount Power Supplies (PSD012, PSD014)
    • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 10BASE-T/100BASE-TX Hardened Managed Ethernet Extender:


    Connect your 10BASE-T/100BASE-TX Hardened Managed Ethernet Extender with:

    Accessory: PS002A

    External 100–240-VAC Power Adapter, 12-VDC Output Jack, U.S. Cord

    External 100–240-VAC Power Adapter, 12-VDC Output Jack, U.S. Cord

    » more info

    Accessory: PSD014

    DIN Mount Power Supply, 48-VDC

    DIN Mount Power Supply, 48-VDC

    » more info

    Accessory: PSD012

    DIN Mount Power Supply, 24-VDC

    DIN Mount Power Supply, 24-VDC

    » more info

    Accessory: PS003A

    External 100–240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord

    External 100–240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord

    » more info

    Accessory: PMK303

    Panel Mount Kit for LB303A and LBM303A

    Panel Mount Kit for LB303A and LBM303A

    » more info
