Industrial > Networking

click photo to enlarge

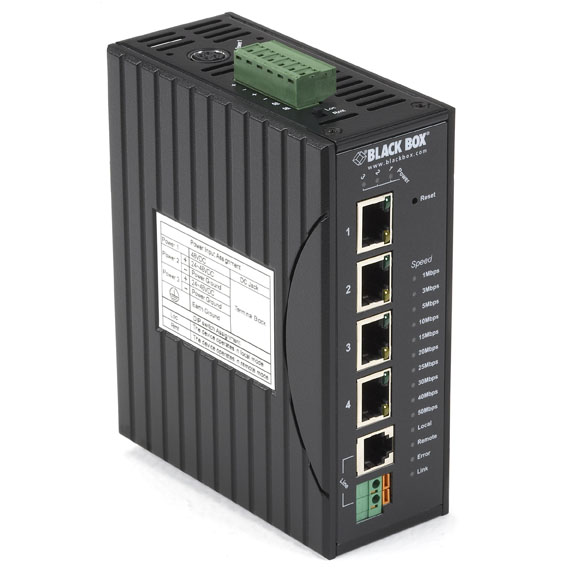

LB304A

Photo may show similar product

Other views

  • LB304A
  • LB304A

10BASE-T/100BASE-TX Hardened Ethernet Extender over vDSL, 4-Port

Provides an easy, inexpensive way to extend the reach of your Ethernet network and add ports, even in harsh conditions.

LB304A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extends 10- or 100-Mbps Ethernet up to 1.2 miles (2 km).
  • For use at extreme temperatures from -40 to +167° F (-40 to +75° C).
  • Adds four ports at the edge of your network.


    • Description

    10BASE-T/100BASE-TX Hardened Ethernet Extender over vDSL, 4-Port


    Quick Facts

  • Extends 10- or 100-Mbps Ethernet up to 1.2 miles (2 km).
  • For use at extreme temperatures from -40 to +167° F (-40 to +75° C).
  • Adds four ports at the edge of your network.

    • Further Details

  • Simple plug-and-play installation.
  • Saves wiring costs by using voice-grade copper wire—even phone wire you already have installed.
  • Uses symmetrical vDSL for speeds of up to 30 Mbps.
  • Transparent to network protocols.
  • Eight speeds with easy-to-read speed indicator LEDs on top of the extender.
  • Auto MDI/MDI-X on the Ethernet ports.
  • Autosensing for Ethernet speed and duplex.

  • Hot swap extender without powering down.
  • A switch configures the extender for local (CO) or remote (CP) use.

    This 10BASE-T/100BASE-TX Hardened Ethernet Extender uses vDSL to provide an easy, inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Use the Hardened Extender for harsh environments and extended temperature ranges. Because you use your existing copper infrastructure, you save on cabling costs. Plus it has an internal switch and four Ethernet ports, so you can use it to easily add remote ports at the edge of your network.

    Easy setup
    Just plug a hardened extender into each end of your copper wire and use simple DIP switches to set one unit as local (CO) and the other as remote (CP).

    The extender is transparent to upper level protocols such as TCP/IP, and there's never any software to install. Plus, the RJ-45 port autosenses speed and duplex, and it features MDI/MDI-X, so your Ethernet is virturally foolproof!

    Standalone or rackmount
    You can use this compact extender as a desktop or a wallmount standalone unit.

    NOTE: Must be used in pairs with another LB304A, with the 1-port version of this extender (LB303A), or with the LinkGain Ethernet Extender over VDSL (LB300A-R3).


    • Technical Specifications for 10BASE-T/100BASE-TX Hardened Ethernet Extender over vDSL, 4-Port:


    Environmental — Operating Temperature: -40 to +167° F (-40 to +75° C)
    CE Approval — Yes
    Connectors — (1) RJ-11, (4) RJ-45
    Indicators — LEDs: (1) Power;
    (4) Speed;
    (1) Ethernet Link/Activity;
    (1) Ethernet Full Duplex;
    (1) VDSL Error;
    (1) VDSL Link;
    (1) VDSL Local;
    (1) VDSL Remote
    Power < Power supply sold separately:
    PS002A: 100–240, 50–60 Hz VAC input to 12 VDC output, barrel jack;
    PS003A: 100–240, 50–60 Hz VAC input to 12 VDC output, stripped ends for use with terminal block;
    PSD012: 100–240, 50–60 Hz VAC input to 24 VDC output, DIN-rail mount
    PSD014: 100–240, 50–60 Hz VAC input to 48 VDC output, DIN-rail mount
    Size — 2"H x 5.3"W x 4.3"D (5.1 x 13.5 x 10.2 cm)
    Weight — 1.8 lb. (0.8 kg)
    NOTE: Must be used in pairs with another LB304A, with the 1-port version of this extender (LB303A), or with the LinkGain Ethernet Extender over VDSL (LB300A-R3).

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
