Networking > Media Converters

click photo to enlarge

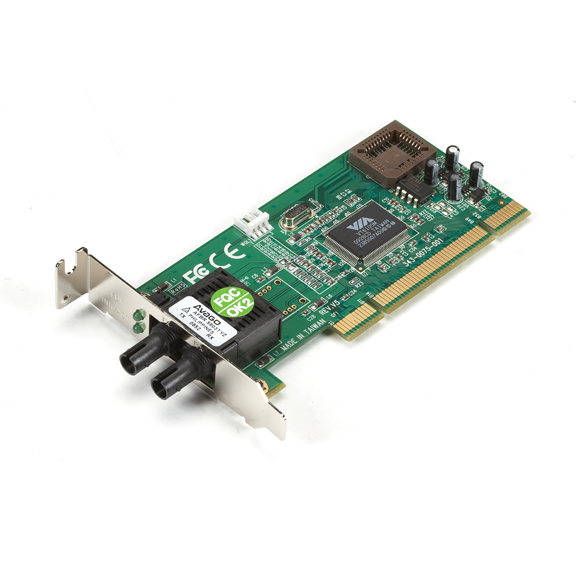

LH1360C-ST

Photo may show similar product

Other views

100BASE-FX Fiber PCI NIC, ST Multimode

The easy way to bring fiber to the desktop

LH1360C-ST

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Includes low-profile and standard profile PC brackets.
  • A high performance PCI card to link a workstation to a fiber-based network.
  • Fully complies with all IEEE 802.3u and 100BASE-FX standards.
  • Provides a Fast Ethernet fiber connection for your desktop PC.

  • Description

    100BASE-FX Fiber PCI NIC, ST Multimode


    Quick Facts

  • Includes low-profile and standard profile PC brackets.
  • A high performance PCI card to link a workstation to a fiber-based network.
  • Fully complies with all IEEE 802.3u and 100BASE-FX standards.
  • Provides a Fast Ethernet fiber connection for your desktop PC.

  • Further Details

  • Provides 32-bit bus master data transfer with a PC host.
  • Connects to ST® terminated multimode cabling for distances up to 2 kilometers (1.2 mi.).
  • Designed for low-profile (half-height) PCI bus installation.
  • PCI 2.2 plug-and-play installation.
  • Supports IEEE 802.1p/q VLAN tagging for data prioritization and ensuring Quality of Service (QoS) on a network link.
  • Operates full- or half-duplex.
  • Troubleshoot and verify network/board link, activities, collision, and full-duplex status using LED indicators on the bracket.
  • Wake-on-LAN (WoL) capability and PXE boot support.
  • Supports flow control for fast, reliable network transmissions.
  • Ideal for electronically noisy areas and secure government networks.
  • RoHS compliant.


  • Technical Specifications for 100BASE-FX Fiber PCI NIC, ST Multimode:

    Compliance — FCC Part 15 Class A
    Operation — Full- or half-duplex
    Software Supported — LAN drivers; Windows® 95/98, 2000, Windows XP® 4.0; Windows Vista®, Windows® 7, Novell® NetWare® Server 3.12/4.1x/5.x/6.0; NetWare DOS Client OD; Linux®; PXE Boot Server, Novell RPL Boot ROM; NPXE Boot ROM Speed — 100 Mbps
    Standard — IEEE 802.3u Fast Ethernet 100BASE-FX
    CE Approval — Yes
    Connectors — (1) duplex ST
    Indicators — LEDs on bracket: (1) LINK/ACT, (1) FDX
    Power — From the PCI bus; 1 A at + 5 V


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 100BASE-FX Fiber PCI NIC, ST Multimode:

    Drivers

    • LH1360C-ST Drivers
      Drivers for the LH1360C-ST


    Connect your 100BASE-FX Fiber PCI NIC, ST Multimode with:
