Networking > Extenders

click photo to enlarge

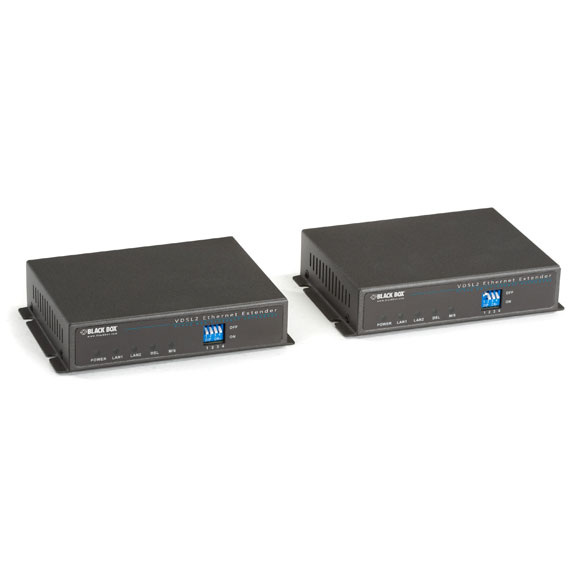

LBT01A-KIT

Photo may show similar product

Other views

  • LBT01A-KIT
  • LBT01A-KIT

10/100BASE-T Ethernet Extender over VDSL2

Save on wiring. Extend Ethernet and voice calls over the same line.

LBT01A-KIT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Go much farther than what standard Ethernet cabling allows.
  • Transmits 100-/60-Mbps downstream/upstream rates up to 984.2 feet (300 m).
  • Uses one pair of CAT3 or higher UTP cable.
  • Simultaneously supports phone calls over the same line used for data.


    • Description

    10/100BASE-T Ethernet Extender over VDSL2


    Quick Facts

  • Go much farther than what standard Ethernet cabling allows.
  • Transmits 100-/60-Mbps downstream/upstream rates up to 984.2 feet (300 m).
  • Uses one pair of CAT3 or higher UTP cable.
  • Simultaneously supports phone calls over the same line used for data.

    • Further Details

  • VDSL2 (Very high-bit-rate Digital Subscriber Line 2) technology.
  • Low latency. Great for video/voice/data convergent communications.
  • Selectable bandwidth. Configure for speed or distance.
  • Autodetects for 10BASE-T/100BASE-TX, half-/full-duplex.
  • Auto MDI-X for straight-through or crossover cable pinning.
  • Includes both a transmitter and a receiver.

    Bridge two LANs at extended distances over ordinary, voice-grade copper as a cost-effective and flexible way to stretch your data network.

    But that’s not all. The 10/100BASE-T Ethernet Extender over VDSL2 also features POTS line connectivity. This way, you can make phone calls over the same line used for data. The extender enables you to extend converged data/voice communications in a simple yet inexpensive way.

    At distances of 984.2 feet (300 m) over 24 AWG wiring, the extender transmits 100-/60-Mbps downstream/upstream data rates. For lower data rates (30-/10-Mbps speeds), it goes as far as 0.6 miles (1 km). For data only without voice, the extender supports distances of up to 2.48 miles (4000 m) at 28-/0.3-Mbps speeds.

    With the 10/100BASE-T Ethernet Extender over VDSL2, you can connect one network to another at distances much longer than what’s possible with standard Ethernet communications—and without the expense of upgrading to fiber. All the necessary conversion is built in, enabling you to take advantage of existing single-pair copper runs between buildings for point-to-point Ethernet connectivity.

    And it features low latency, supporting broadband data communications, including bandwidth-hungry applications, such as video streaming and FTTB (fiber-to-the-building) extensions.

    The extender offers selectable fixed data rates and fixed SNR margin for different ranges of copper lines, as well as selectable Fast and Interleaved modes.

    Each extender has an RJ-45 Ethernet port, an RJ-11 DSL port for the copper interconnection, and an RJ-11 POTS jack, which you can use for a phone or fax machine. DIP switches control master/slave designation.

    What’s included:
    • (2) extender units
    • (2) power supplies
    • (2) RJ-11 cables
    • (2) panel-mount kits
    • (2) sets of rubber feet
    • (2) 3-position terminal blocks
    • (1) user manual on CD


    • Technical Specifications for 10/100BASE-T Ethernet Extender over VDSL2:


    Compliance — VDSL: ITU-T G.993.1, G.993.2 VDSL/VDSL2, SG15Q4 DMT;
    Ethernet: IEEE 802.3/802.3u
    Coding — Trellis Code with 1024 DMT bins
    Distance (Maximum) — Over 24 AWG*: 100/60 Mbps: 984.2 ft. (300 m);
    30/10 Mbps: 0.6 m. (1 km)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Each unit: (1) RJ-45 (LAN); (2) RJ-11 (POTS, DSL); (1) 3-position terminal block
    Indicators — Each unit: (4) LEDs: Power, LAN, (1) DSL (VDSL2 loop connection status), (1) M/S (master/slave selection)
    Power — For each unit: Input: 100–240 VAC 50-60 Hz;
     Output: 5 VDC, 1 A
    Size — Each unit: 1.1"H x 4.7"W x 3.5"D (2.8 x 12 x 9 cm)



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 10/100BASE-T Ethernet Extender over VDSL2:

    Manuals

    • 10/100BASE-T Ethernet Extender over VDSL2 User Manual
      Manual for the LBT01A-KIT (Version 2)
      httpftp

    Application Diagrams


    Connect your 10/100BASE-T Ethernet Extender over VDSL2 with:
