Networking > Terminal Servers

click photo to enlarge

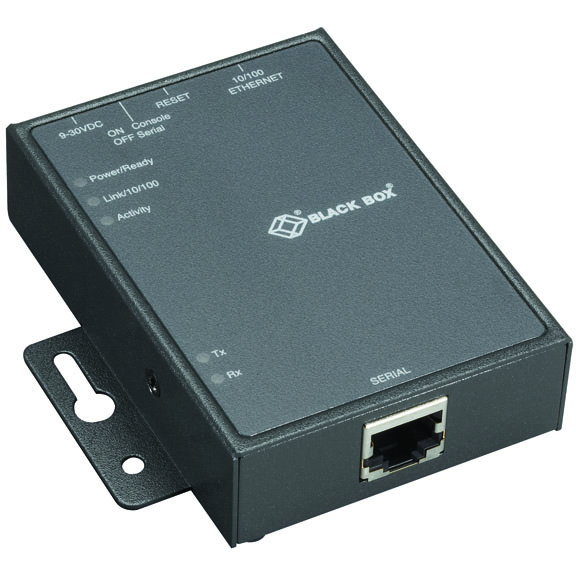

LES4014A

Photo may show similar product

Other views

10/100 Terminal Server, 1-Port, RS-232/422/485, RJ-45

Fast, easy access to serial devices across your Ethernet network.

LES4014A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Simple, single-port serial connectivity with a variety of interface options.
  • Access a single serial device over your Ethernet network.
  • Software selectable for RS-232, RS-422, or RS-485.
  • Software-selectable interface prevents tampering in the field.

  • Description

    10/100 Terminal Server, 1-Port, RS-232/422/485, RJ-45


    Quick Facts

  • Simple, single-port serial connectivity with a variety of interface options.
  • Access a single serial device over your Ethernet network.
  • Software selectable for RS-232, RS-422, or RS-485.
  • Software-selectable interface prevents tampering in the field.

  • Further Details

  • Choose from four serial connector types.
  • Autosensing 10-/100-Mbps Ethernet.
  • Choose from DB9 male, DB25 male, DB25 female, or RJ-45 connectors.
  • The Ethernet side is autosensing for speed and duplex.
  • Full bidirectional modem support.
  • Completely manageable through any Web browser or Telnet™.
  • Supports SNMP manangement.
  • Include COMredirect software to provide true remote serial ports over an Ethernet LAN.
  • Also include Device Manager software to provide central control of multiple terminal servers.
  • Built-in surge protection on all interfaces.
  • Clear LEDs for easy troubleshooting.
  • 66-MHz, 87-MIPS processor.
  • Optional DIN rail mounting with the DIN Rail Mounting Kit (see our Secure Device Server Accessories).


  • Make the connection to serial devices such as sensors and time clocks—even industrial devices such as milling machines and conveyor belts. These simple 1-Port 10/100 Terminal Servers make the connection easily, yet offer the sophistication that make them indispensible in large, managed installations.

    Manage them through any Web browser. 10/100 Terminal Servers support Next Generation IP (IPv6), making them compatible with networks that have upgraded to this new IP standard. Plus the included COMredirect software provides fixed TTY or COM ports so server-based applications can communicate accurately with serial devices. The terminal servers also support SNMP for integration into managed networks.

    These compact terminal servers are housed in a solid steel enclosure, which can be used on the desktop or wallmounted. Plus, for industrial applications, they’re DIN-rail mountable with the DIN Rail Mounting Kit (see Secure Device Server Accessories).

    These products work with:
  • Secure Device Server Accessories
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for 10/100 Terminal Server, 1-Port, RS-232/422/485, RJ-45:

    Environmental — Operating temperature: 32 to 131° F (0 to 55° C);
    Storage temperature: -40 to 150° F (-40 to 66° C)
    Interface — Serial: RS-232, RS-422, RS-485, software selectable;
    Network: 10BASE-T/100BASE-TX
    Processor — 66-MHz, 87-MIPS PowerQUICC MPC852T
    Management — Web browser; DeviceManager software (included); Telnet, shared console port; SNMP, MIB II, read and write
    Protocols — IPV6, IPV4, TCP/IP, CIDR, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, Telnet, Raw, Reverse Telnet, RCP, HTTP
    CE Approval — Yes
    Connectors — All: (1) RJ-45 10-/100-Mbps Ethernet;
    LES4011A: (1) DB9 M;
    LES4012A: (1) DB25 M;
    LES4013A: (1) DB25 F;
    LES4014A: (1) RJ-45
    Indicators — LEDs: (1) Power/ready, (1) Link status/LAN speed, (1) Network link activity, (1) Serial Tx and Rx data
    Power — 120-VAC, 50-Hz external power supply; international versions on request
    Size — 0.9"H x 2.5"W x 3.5"D (2.3 x 6.4 x 9 cm)
    Weight — 0.5 lb. (0.2 kg)
    These products work with:
  • Secure Device Server Accessories
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
