Networking > PoE

click photo to enlarge

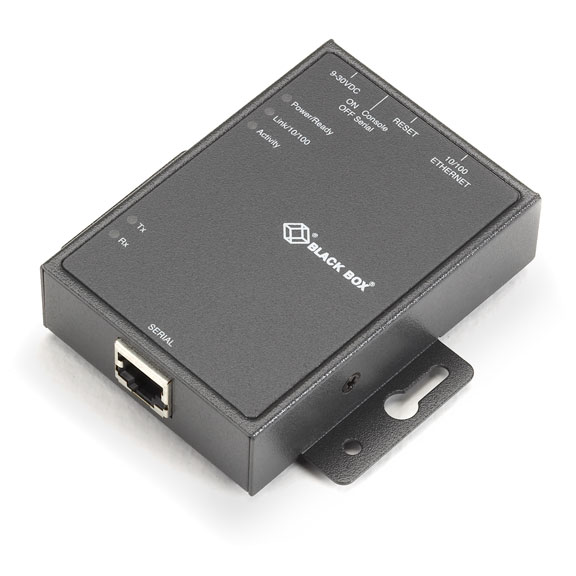

LES5015A

Photo may show similar product

Other views

  • LES5015A
  • LES5015A

10/100 Secure Device Server, 1-Port, RJ-45, PoE

Device servers with superior security features in a wide range of interface options.

LES5015A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Access serial devices securely over your 10- or 100-Mbps Ethernet network.
  • Choose from a wide range of connector options.
  • Secure access to serial devices across your Ethernet network.
  • Software-selectable interface prevents tampering in the field.


    • Description

    10/100 Secure Device Server, 1-Port, RJ-45, PoE


    Quick Facts

  • Access serial devices securely over your 10- or 100-Mbps Ethernet network.
  • Choose from a wide range of connector options.
  • Secure access to serial devices across your Ethernet network.
  • Software-selectable interface prevents tampering in the field.

    • Further Details

  • Easy to manage through any Web browser or Telnet.™
  • Secured with 128-, 192- and 256-bit AES, 3DES, Blowfish, and CAST128, plus ARCFOUR or ARCTWO data encryption across the LAN via SSH and SSL.
  • Power over Ethernet (PoE) models are IEEE802.3af compliant.
  • Include COMredirect software to provide true remote serial ports over an Ethernet LAN.
  • Feature a 66-MHz, 87-MIPS processor.
  • Built-in surge protection on all interfaces.
  • Can be DIN rail mounted with the DIN Rail Mounting Kit (see Secure Device Server Accessories).


    • These device servers are software selectable for RS-232, RS-422, or RS-485.

    Secure Device Servers enable you to use your Ethernet network to securely access remote RS-232/422/485 ports on serial equipment such as industrial equipment or security devices.

    Secure serial connectivity
    The servers protect sensitive data from serial devices such as credit card readers through encryption with Secure Shell (SSH) and Secure Sockets Layer (SSL). The device servers also support all major encryption ciphers such as AES, 3DES, RC4, RC2, and CAST128. User authentication through RADIUS, TACACS+, LDAP, Kerberos, NIS, and RSA Security’s SecurID tokens ensures that only authorized users can access the system. Secure Device Servers support Next Generation IP (IPv6), making them compatible with networks that have upgraded to this new IP standard. Plus the included COMredirect software provides fixed TTY or COM ports so server-based applications can communicate accurately with serial devices in encrypted or clear text modes. The device servers also support SNMP for integration into managed networks.

    Control
    Secure Device Servers are easy to manage through any Web browser or Telnet. They include Device Manager software to provide central control of multiple terminal servers, so you get maximum uptime for your remote equipment.

    Powered by Ethernet
    The Power over Ethernet (PoE) models of the device server operate as a Powered Device (PD), fully compliant with IEEE 802.3af PoE specifications. It features inrush current protection guard against input current surges that may occur during power up.

    Dialup, too, if you need it
    The LES5016A model features an integrated V.92/V.90 modem with support for PPP dial-in connections.

    These products work with:
  • Secure Device Server Accessories
    • Questions? Contact our FREE Tech Support.


    Technical Specifications for 10/100 Secure Device Server, 1-Port, RJ-45, PoE:

    Environmental — Operating temperature: +32 to +131° F ( 0 to +55° C);
    Storage temperature: -40 to +150° F (-40 to +66° C)
    Management — Web browser; Device Manager software (included); Telnet, shared console port; SNMP, MIB II, read and write; Syslog
    Port Buffering — 256K per port or 3DES encrypted to NFS server
    Processor — 66 MHz, 87 MIPS
    Protocols — IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP
    Security and Authentication — SSHV1 and SSHV2; SSL V3.0/TLS V1.0, SSL V2.0 SSL Server and SSL client mode capability;
    Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2);
    Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96;
    Key exchange: RSA, EDH-RSA, EDH-DSS, ADH;
    X.509 Certificate verification: RSA, DSA;
    Certificate authority (CA) list; Local database; RADIUS Authentication and Accounting; TACACS+, LDAP, NIS, Kerberos; RSA SecureID-agent or via RADIUS; IP Address filtering; Disable unused daemons
    Serial Ports — Software selectable to RS-232, RS-422, or RS-485; Full modem and hardware flow control; 50 bps to 230 kbps for EIA-232; Up to 230 kbps for EIA-422/485; Sun® Break-Safe; Full bidirectional modem support; 15Kv ESD protection on all signals
    CE Approval — Yes
    Interface — Serial: RS-232, RS-422, RS-485, software selectable;
    Network: 10BASE-T/100BASE-TX
    Connectors — LES5011A: (1) RJ-45 10-/100-Mbps Ethernet, (1) DB9 M serial;
    LES5012A: (1) RJ-45 10-/100-Mbps Ethernet, (1) DB25 M serial;
    LES5013A: (1) RJ-45 10-/100-Mbps Ethernet, (1) DB25 F serial;
    LES5014A–LES5015A: (1) RJ-45 10-/100-Mbps Ethernet, (1) RJ-45 serial;
    LES5016A: (1) RJ-45 10-/100-Mbps Ethernet, (1) RJ-45 serial, (1) RJ-11 modem;
    LES5024A: (1) RJ-45 10-/100-Mbps Ethernet, (2) RJ-45 serial;
    LES5044A–LES5045A: (1) RJ-45 10-/100-Mbps Ethernet, (2) RJ-45 serial;
    Indicators — LEDs: Per unit: (1) Power/Ready;
    Per Ethernet port: (1) Network Link activity;
    Per serial port: (1) Tx and Rx data
    Power — LES5011A–LES5014A, LES5016A, LES5014A, LES5044A:120-VAC, 50-Hz external power supply, International power supplies available upon request;
    LES5015A, LES5045A: 802.3af Power over Ethernet compliant data pins (1/2, 3/6) or unused pins (4/5, 7/8), external power 9–30V DC, 10 watts, standard barrel socket (AC adapter included), power over serial cable (+5V reg, 1W max), International power supplies available on request
    Size — LES5011A–LES5016A, LES5024A: 0.9"H x 2.5"W x 3.5"D (2.3 x 6.4 x 9 cm);
    LES5044A–LES5045A: 1.1"H x 3.2"W x 4.4"D ( 2.6 x 8.1 x 11.3 cm)
    Weight — LES5011A–LES5016A, LES5024A: 0.5 lb. (0.2 kg);
    LES5044A–LES5045A: 0.8 lb. (0.3 kg)
    These products work with:
  • Secure Device Server Accessories
    • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
