Networking > Console Servers


click photo to enlarge

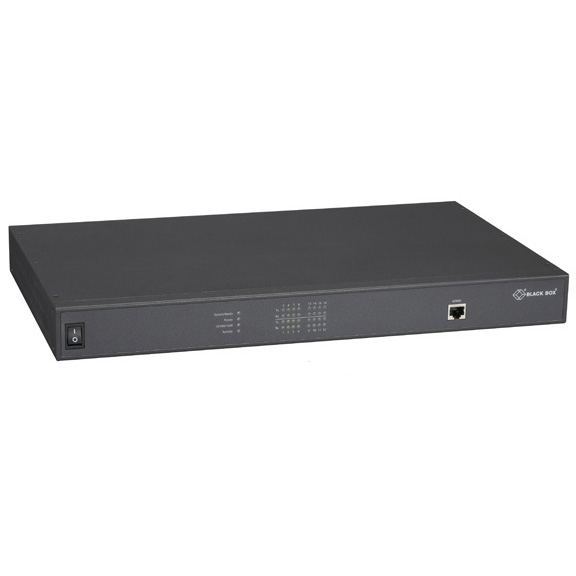

LES7244A

Photo may show similar product

Other views

10/100/1000 Secure Terminal Server, Rackmount, 24-Port

Superior security in a high-density rackmount chassis.

This product replaces the 24-Port Console Server (LS50124A-R2, LS50124-R3).

LES7244A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Securely access remote serial console ports.
  • Access up to 24 serial devices securely over your Ethernet network.


  • Description

    10/100/1000 Secure Terminal Server, Rackmount, 24-Port


    Quick Facts

  • Securely access remote serial console ports.
  • Access up to 24 serial devices securely over your Ethernet network.

  • Further Details

  • RS-232 ports with RJ-45 interface.
  • 10-/100-/1000-Mbps Ethernet ports are autosensing for speed and duplex. Gigabit Ethernet operates at full-duplex only.
  • Easy to manage through any Web browser or Telnet.
  • Secured with 128-, 192- and 256-bit AES, 3DES, Blowfish, and CAST128, plus ARCFOUR or ARCTWO data encryption across the LAN via SSH and SSL.
  • Support SNMP V3 management.
  • Support e-mail event notification.
  • Support for Syslog enables you to track system events for routine troubleshooting and incident handling.
  • Manageable through Windows Device Manager, HTTP, HTTPS/SSL/TLS, SSH, or Telnet™.
  • Include COMredirect software to provide true remote serial ports over an Ethernet LAN.
  • Feature a 400-MHz, 750-MIPS, 32-bit processor.
  • Built-in surge protection on all interfaces.
  • Housed in a compact 1U rackmount chassis.

  • 10/100/1000 Secure Console Servers enable you to use your Ethernet network to securely access remote serial console ports on equipment such as PBXs, servers, routers, or network storage equipment. Each is housed in a compact chassis with up to 24 ports for high port density. And with support for 10-/100-/1000-Mbps Ethernet, they easily adapt to your network type and continue to work seamlessly when you upgrade your network.

    Secure Serial Connectivity
    The servers protect sensitive data from serial devices such as credit card readers through encryption with Secure Shell (SSH) and Secure Sockets Layer (SSL). The console servers also support all major encryption ciphers such as AES, 3DES, RC4, RC2, and CAST128. User authentication through RADIUS, TACACS+, LDAP, Kerberos, NIS, and RSA Security's SecurID tokens ensures that only authorized users can access the system.

    10/100/1000 Secure Console Servers support Next Generation IP (IPv6), making them compatible with networks that have upgraded to this new IP standard. Plus the included COMredirect software provides fixed TTY or COM ports so server-based applications can communicate accurately with serial devices in encrypted or clear text modes. The console servers also support SNMP for integration into managed networks.

    10/100/1000 Secure Console Servers include Device Manager software to provide central control of multiple console servers, so you get maximum uptime for your remote equipment.


    Technical Specifications for 10/100/1000 Secure Terminal Server, Rackmount, 24-Port:

    Environmental Operating temperature: +32 to +131° F (0 to +55° C);
    Storage temperature: -40 to +150° F (-40 to +66° C)
    Management Web browser; Device Manager software (included); Telnet, shared console port; SNMP, MIB II, read and write Syslog
    Port Buffering 256 KB per port or 3DES encrypted to NFS server
    Processor 400 MHz, 750 MIPS, 32 bit
    Protocols IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP
    Security and Authentication SSHV1 and SSHV2; SSL V3.0/TLS V1.0, SSL V2.0 SSL Server and SSL client mode capability;
    Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2);
    Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96;
    Key exchange: RSA, EDH-RSA, EDH-DSS, ADH;
    X.509 Certificate verification: RSA, DSA;
    Certificate authority (CA) list; Local database; RADIUS Authentication and Accounting; TACACS+, LDAP, NIS, Kerberos; RSA SecureID-agent or via RADIUS; IP Address filtering; Disable unused daemons
    Serial Ports EIA-232, RJ-45 connectors, full modem and hardware flow control, 50 bps to 230 kbps, Sun® Break Safe, full bidirectional modem support, 15Kv ESD protection on all signals
    CE Approval Yes
    Interface Serial: RS-232;
    Network: 10BASE-T/100BASE-TX/1000BASE-T
    Connectors LES7044A: (1) RJ-45 10-/100-/1000-Mbps Ethernet, (4) RJ-45 RS-232;
    LES7084A: (1) RJ-45 10-/100-/1000-Mbps Ethernet, (8) RJ-45 RS-232;
    LES7164A: (1) RJ-45 10-/100-/1000-Mbps Ethernet, (16) RJ-45 RS-232;
    LES7244A: (1) RJ-45 10-/100-/1000-Mbps Ethernet, (24) RJ-45 RS-232
    Indicators LEDs: Per unit: (1) Power/Ready;
    Per Ethernet port: (1) Network Link activity;
    Per serial port: (1) Tx and Rx data
    Power 120-VAC, 60-Hz external power supply; international power supplies available on request
    Dimensions 1.75"(1U)H x 17.1"W x 10.4"D (4.4 x 43.4 x 26.4 cm)
    Weight LES7044A: 6.2 lb. (2.8 kg);
    LES7084A: 6.6 lb. (3 kg);
    LES7164A, LES7244A: 6.8 lb. (3.1 kg)
