Networking > Console Servers

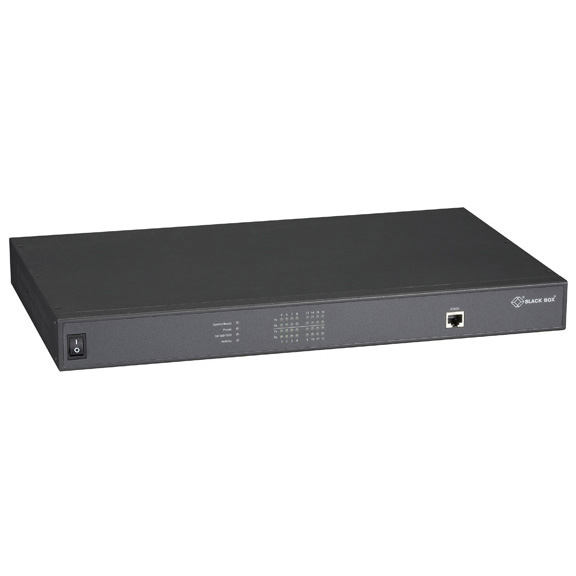

click photo to enlarge

LES5164A

Photo may show similar product

Other views

  • LES5164A
  • LES5164A

10/100/1000 Secure Device Server, Rackmount, 16-Port, RJ-45

Rackmount device servers with superior security features and support for Gigabit Ethernet.

LES5164A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Access up to 16 serial devices securely over your Ethernet network.


    • Description

    10/100/1000 Secure Device Server, Rackmount, 16-Port, RJ-45


    Quick Facts

  • Access up to 16 serial devices securely over your Ethernet network.

    • Further Details

  • Autosensing 10/100/100-Mbps Ethernet.
  • Software selectable RS-232/422/485 serial interface.
  • Secure access to serial devices across your Ethernet network.
  • Software-selectable interface prevents tampering in the field.
  • Easy to manage through any Web browser or Telnet.
  • Secured with 128-, 192- and 256-bit AES; 3DES; Blowfish; and CAST128, plus ARCFOUR or ARCTWO data encryption across the LAN via SSH and SSL.
  • Support SNMP V3 management.
  • Support e-mail event notification.
  • Support for Syslog enables you to track system events for routine troubleshooting and incident handling.
  • Include COMredirect software to provide true remote serial ports over an Ethernet LAN.
  • Feature a 400-MHz, 750-MIPS, 32-bit processor.
  • Built-in surge protection on all interfaces.
  • Housed in a compact 1U rackmount chassis.


    • 10/100/1000 Secure Device Servers enable you to use your Ethernet network to securely access remote RS-232/422/485 ports on serial equipment such as industrial equipment or security devices. Support for Gigabit Ethernet as well as 10BASE-T Ethernet and Fast Ethernet makes them adaptable to any virtually network configuration. The compact 1U rackmount chassis is ideal for high-density enterprise applications.

    Secure Serial Connectivity
    The servers protect sensitive data from serial devices such as credit card readers through encryption with Secure Shell (SSH) and Secure Sockets Layer (SSL). The device servers also support all major encryption ciphers such as AES, 3DES, RC4, RC2, and CAST128. User authentication through RADIUS, TACACS+, LDAP, Kerberos, NIS, and RSA Security’s SecurID tokens ensures that only authorized users can access the system.

    Secure Device Servers support Next Generation IP (IPv6), making them compatible with networks that have upgraded to this new IP standard. Plus the included COMredirect software provides fixed TTY or COM ports so server-based applications can communicate accurately with serial devices in encrypted or clear text modes. The device servers also support SNMP for integration into managed networks.

    Secure Device Servers include Device Manager software to provide central control of multiple terminal servers, so you get maximum uptime for your remote equipment.


    Technical Specifications for 10/100/1000 Secure Device Server, Rackmount, 16-Port, RJ-45:

    Environmental — Operating temperature: +32 to +131° F (0 to +55° C);
    Storage temperature: -40 to +150° F (-40 to +66° C)
    Interface — 10BASE-T/100BASE-TX/1000BASE-T
    Processor — 400-MHz, 750-MIPS, 32-bit
    Management — Web browser; Device Manager software (included); Telnet™, shared console port; SNMP, MIB II, read and write Syslog
    Port Buffering — 256 KB per port or 3DES encrypted to NFS server
    Protocols — IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP
    Security and Authentication — SSHV1 and SSHV2; SSL V3.0/TLS V1.0, SSL V2.0; SSL Server and SSL client mode capability;
    Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2);
    Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96;
    Key exchange: RSA, EDH-RSA, EDH-DSS, ADH;
    X.509 Certificate verification: RSA, DSA;
    Certificate authority (CA) list; Local database; RADIUS Authentication and Accounting; TACACS+, LDAP, NIS, Kerberos; RSA SecureID-agent or via RADIUS; IP Address filtering; Disable unused daemons
    Serial Ports — Software selectable to RS-232, RS-422, or RS-485; Full modem and hardware flow control; 50 bps to 230 kbps for EIA-232; Up to 230 kbps for EIA-422/485; Sun® Break Safe; Full bidirectional modem support; 15Kv ESD protection on all signals
    CE Approval — Yes
    Connectors — LES5084A: (1) RJ-45 10-/100-/1000-Mbps Ethernet, (8) RJ-45 serial;
    LES5164A: (1) RJ-45 10-/100-/1000-Mbps Ethernet, (16) RJ-45 serial
    Indicators — LEDs: Per unit: (1) Power/Ready;
    Per Ethernet port: (1) Network Link activity;
    Per serial port: (1) Tx and Rx data
    Power — 120-VAC, 50-Hz external power supply; international power supplies available on request
    Size — 1.75"(1U)H x 17.1"W x 10.4"D (4.4H x 43.4 x 26.4 cm)
    Weight — 6.6 lb. (3 kg)
    Warranty — 1 Year

    These products work with:
  • Secure Device Server Accessories
    • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
