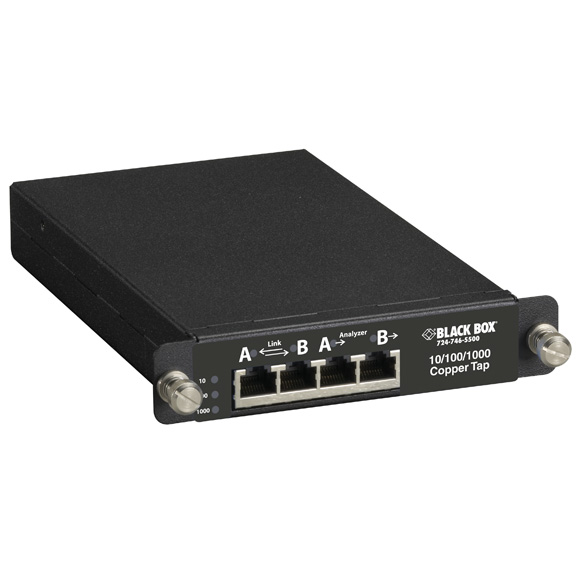

TS250A

Photo may show similar product

Other views

10/100/1000 Copper Tap

Monitor high-speed, full-duplex links with no network disruption.

TS250A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Copy data from full-duplex copper links to monitoring equipment for analysis.
  • Provides an accurate view of your copper network.


  • Description

    10/100/1000 Copper Tap


    Quick Facts

  • Copy data from full-duplex copper links to monitoring equipment for analysis.
  • Provides an accurate view of your copper network.

  • Further Details

  • Give monitoring equipment a complete copy of data from full-duplex network links.
  • Offers complete network visibility regardless of traffic levels.
  • Provides passthrough signals and separate copies of the TX and RX signals.
  • Autonegotiates speed to transfer data at rates of 10, 100, and 1000 Mbps.
  • Operates transparently.
  • Doesn't block error packets.
  • Can be left in place permanently.
  • Connect and disconnect monitoring devices without network disruption.
  • Provides continuous network data flow if the power fails.
  • Mount three taps in one rackmount bracket.

  • Get a complete and accurate view into the traffic on your 10-/100-/1000-Mbps Ethernet network without any network disruption or downtime.

    The 10/100/1000 Copper Tap provides a complete copy of data from a full-duplex copper link to your network analyzer. First, the tap replicates the full-duplex signal from the network. Then it sends one signal back to the network and the other signal to a monitoring device equipped with a dual-receive capture card.

    Use the tap with all types of equipment—network and protocol analyzers, security monitoring devices, remote monitoring applications, RMON probes, and more.

    The tap operates passively and works regardless of traffic levels. Once you install the Tap, you can leave it in permanently without interfering with network operation and minimizing points of failure. You can even connect and disconnect different monitoring devices without interrupting the network.

    A Copper Tap Rackmount Bracket (TS253) (sold separately) holds three taps.


    Technical Specifications for 10/100/1000 Copper Tap:

    Approvals CE
    Interface 10/100/1000BASE-T Ethernet
    Connectors (2) RJ-45 analyzer ports; (2) RJ-45 link ports
    Indicators (7) LEDs: (3) speed, (2) Link, (2) Analyzer
    Power 90-264 VAC, 4-63 Hz
    Dimensions 1.1"H x 5.6"W x 7.6"D (2.8 x 14.7 x 19.3 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 10/100/1000 Copper Tap:

    Manuals

    • Single Channel Optical Tap User Manual
      User Manual for the TS230A-R2, TS240A-R2, TS243A, TS244A, TS245A, TS246A, TS250A, TS253, TS254A, TS255A, and TS256A (1)

    Product Data Sheets

    Application Diagrams


    Connect your 10/100/1000 Copper Tap with:

    Accessory: TS240A-R2

    Single-Channel Optical Tap, 50/50 Split Ratio, Multimode, 62.5-µm

    Single-Channel Optical Tap, 50/50 Split Ratio, Multimode, 62.5-µm

    Accessory: TS242

    Filler Blank for Module Rack

    Filler Blank for Module Rack

    Accessory: TS243A

    Single-Channel Optical Tap, 50/50 Ratio, Multimode, 50-µm

    Single-Channel Optical Tap, 50/50 Ratio, Multimode, 50-µm

    Accessory: TS244A

    Single-Channel Optical Tap, 50/50 Split Ratio, Single-Mode, 9-µm

    Single-Channel Optical Tap, 50/50 Split Ratio, Single-Mode, 9-µm

    Accessory: TS245A

    Single-Channel 10-GB Optical Tap, 50/50 Split Ratio, Multimode, 50-µm

    Single-Channel 10-GB Optical Tap, 50/50 Split Ratio, Multimode, 50-µm

    Accessory: TS253

    10/100/1000 Copper Tap Rackmount Bracket, 19", 1U

    10/100/1000 Copper Tap Rackmount Bracket, 19", 1U

    Accessory: TS254A

    10/100/1000 Copper Aggregator Tap, 256 MB Buffer

    10/100/1000 Copper Aggregator Tap, 256 MB Buffer

    Accessory: TS255A

    10/100/1000 Copper Aggregator Tap, 512 MB Buffer

    10/100/1000 Copper Aggregator Tap, 512 MB Buffer

    Accessory: TS256A

    10/100/1000 Copper Aggregator Tap, 1 GB Buffer

    10/100/1000 Copper Aggregator Tap, 1 GB Buffer
