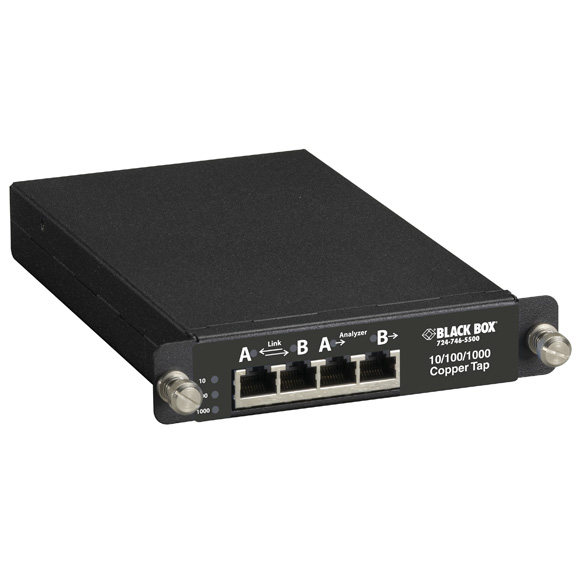

TS256A

Photo may show similar product

Other views

10/100/1000 Copper Aggregator Tap, 1 GB Buffer

Monitor a network for analysis and data logging.

TS256A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Aggregate traffic into a single stream for examination by one or two analysis or security devices.
  • Copies both sides of a full-duplex 10-, 100-, or 1000-Mbps copper link.
  • Sends the copied data to its two simplex ports where it buffers the data for output to two analysis devices!

  • Description

    10/100/1000 Copper Aggregator Tap, 1 GB Buffer


    Quick Facts

  • Aggregate traffic into a single stream for examination by one or two analysis or security devices.
  • Copies both sides of a full-duplex 10-, 100-, or 1000-Mbps copper link.
  • Sends the copied data to its two simplex ports where it buffers the data for output to two analysis devices!

  • Further Details

  • Connect and disconnect monitoring devices without network disruption.
  • Buffer data during short spikes of high usage, caching packets until the analyzer is ready to receive.
  • Tap into a high-speed copper network with no disruption or downtime.
  • Second simplex port can be used for attaching a logging device.
  • Help prevent a monitoring device from being fed incomplete network information and creating false alarms.
  • Autonegotiate speed to transfer data at rates of 10, 100, and 1000 Mbps.
  • Operate transparently and can be left in place permanently.
  • Doesn't block error packets.
  • Connect and disconnect monitoring devices without network disruption.
  • Provide continuous network data flow if the power fails.
  • Mount three taps in an optional Rackmount Bracket (TS253).


  • Accurately monitoring network activity often means using more than one analysis device, as well as ensuring that data isn't lost before analysis.

    The BLACK BOX® 10/100/1000 Copper Aggregator Tap gives you easy access to the data streams passing on a full-duplex link. But because it also works as an "aggregator," it copies both sides of the link into a single data stream and distributes the copied data to its dual simplex ports. You can then attach up to two analysis devices for further examination.

    The large 1-GB buffer enables the tap to store a large amount of data before sending it for analysis. It also reduces the chance of dropped packets on Gigabit links. So if there's a spike in usage on your network, there's a much smaller chance of data getting lost before it can be examined in its entirely. If the network traffic entering the tap exceeds the capacity of the analyzer's capturing cards, the buffer goes to work, capturing as much traffic as possible and releasing it only when the analyzer's capacity to receive returns.

    Typically, you install a 10/100/1000 Copper Aggregator Tap between a switch and a DTE. From there, it replicates the full-duplex signal from the network, sending one signal back to the network and the other signal to one or two monitoring devices.

    The 10/100/1000 Copper Aggregator Tap operates passively and works regardless of traffic levels. Once you install a tap, you can leave it in permanently without interfering with network operation or introducing a point of failure. You can even connect and disconnect different monitoring devices without interrupting the network.

    With a tap installed on your 10-, 100-, or 1000-Mbps links, you're assured of continuous data flow, even if power to the tap itself fails. They also work well with redundant-enabled devices. If the link on one side of the 10/100/1000 Copper Aggregator Tap fails, it'll allow the corresponding device to switch over to a redundant path—great for networks that can't afford any downtime!

    The 10/100/1000 Copper Aggregator Tap works with today's leading security tools, so it helps you quickly isolate vulnerable points in your network. And because it isn't addressable, the tap can't be the target of a hacker or virus attack.

    If you want to deploy more than one tap between links in, say, a wiring closet, order the optional Rackmount Bracket (TS253) (sold separately). It holds up to three taps and mounts in a single 1U rack panel.


    Technical Specifications for 10/100/1000 Copper Aggregator Tap, 1 GB Buffer:

    CE Approval Yes
    Interface 10/100/1000BASE-T Ethernet
    Connectors (2) RJ-45 analyzer ports; (2) RJ-45 link ports
    Indicators (7) LEDs: (3) speed, (2) Link, (2) Analyzer
    Power 90-264 VAC, 4-63 Hz
    Size 1.1"H x 5.6"W x 7.6"D (2.8 x 14.7 x 19.3 cm


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 10/100/1000 Copper Aggregator Tap, 1 GB Buffer:

    Manuals

    • Single Channel Optical Tap User Manual
      User Manual for the TS230A-R2, TS240A-R2, TS243A, TS244A, TS245A, TS246A, TS250A, TS253, TS254A, TS255A, and TS256A (1)
