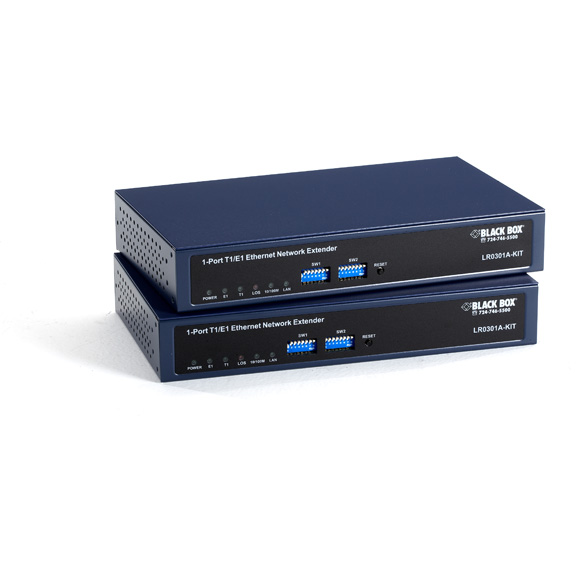

LR0301A-KIT

Photo may show similar product

Other views

1-Port T1/E1 Ethernet Network Extender Kit

Bridge 10BASE-T/100BASE-TX Ethernet across Fractional T1/E1 in unframed or framed mode.

LR0301A-KIT

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Kit includes two extenders.
  • Bridges 10BASE-T/100BASE-TX Ethernet across a single T1/E1 line.
  • Support speeds up to 1.544 Mbps on T1 and 2.048 Mbps on E1.
  • Supports Fractional E1/T1 in framed and unframed mode.


  • Description

    1-Port T1/E1 Ethernet Network Extender Kit


    Quick Facts

  • Kit includes two extenders.
  • Bridges 10BASE-T/100BASE-TX Ethernet across a single T1/E1 line.
  • Support speeds up to 1.544 Mbps on T1 and 2.048 Mbps on E1.
  • Supports Fractional E1/T1 in framed and unframed mode.

  • Further Details

  • Autosensing, autonegotiating 10-/100-Mbps LAN connections.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches make configuration easy.
  • Line build-out (LBO) capability.

  • The pair of extenders included with this kit act as a bridge, enabling you to link two Ethernet networks across T1/E1. Because you're using leased lines provided by your telco, there are no distance limitations—you can extend your network anywhere you can get a T1 line.

    The T1/E1 Ethernet Network Extender converts protocols and data from Fractional T1/E1 to 10BASE-T/100BASE-TX Ethernet and supports both framed and unframed modes with line codes.

    The extenders are easy to install—just connect them then configure them using simple DIP switches.

    What's included:
    (2) Extenders
    (2) Power cords
    (2) CAT5 Ethernet cables
    (2) T1/E1 RJ-48 to Y-connector cables
    (1) CD containing the user's manual


    Technical Specifications for 1-Port T1/E1 Ethernet Network Extender Kit:

    Environmental Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: (2) 5-95%, noncondensing
    CE Approval Yes
    Connectors E1: (2) BNC, T1/E1: (1) RJ-48; Ethernet: (2) RJ-45; RS-232 console port: DB9 F
    Indicators LEDs: (1) Power, (1) E1, (1) T1, (1) LOS, (1) 10/100M, (1) LAN
    Power 110/220 VAC, 50/60 Hz or -48V DC;
    Power consumption: 12 watts typical, 30 watts maximum
    Size 1.7"H x 9.8"W x 5.9"D (4.3 x 25 x 15 cm)
    What's included:
    (2) Extenders
    (2) Power cords
    (2) CAT5 Ethernet Cable
    (2) T1/E1 RJ-48 to Y-connector cables
    (1) CD containing the user's manual

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
