LBNC01A-KIT

Photo may show similar product

Other views

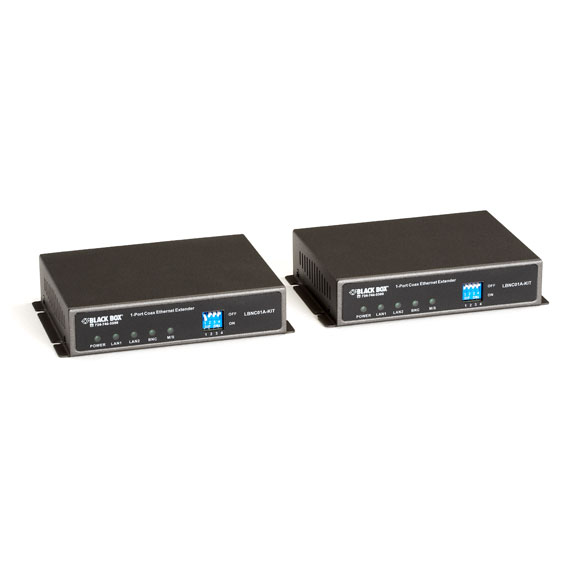

1-Port Coax Ethernet Extender Kit

Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).

LBNC01A-KIT

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • This VDSL2 extender supports distances of up to 1200 meters (0.75 miles) on legacy coax cable.
  • Extends 10/100BASE-TX Ethernet across 75-Ohm CATV cable.
  • Uses VDSL2 technology.
  • Enables you to save money by reusing infrastructure.
  • Kit includes two extenders.
  • Extend 10BASE-T/100BASE-TX up to 1200 meters (0.75 miles) at 28/0.3 Mbps on coax cable.


  • Description

    1-Port Coax Ethernet Extender Kit


    Quick Facts

  • This VDSL2 extender supports distances of up to 1200 meters (0.75 miles) on legacy coax cable.
  • Extends 10/100BASE-TX Ethernet across 75-Ohm CATV cable.
  • Uses VDSL2 technology.
  • Enables you to save money by reusing infrastructure.
  • Kit includes two extenders.
  • Extend 10BASE-T/100BASE-TX up to 1200 meters (0.75 miles) at 28/0.3 Mbps on coax cable.

  • Further Details

  • Dual autosensing, autonegotiating 10-/100-Mbps Ethernet ports enable you to send two separate Ethernet data streams over the same VDSL2 link.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches for central side and remote side configuration.
  • Low latency for video and voice applications.
  • Line surge protection.
  • This high-speed Ethernet extender enables you use CATV coax cable you may already have installed in your building.

    The 1-Port Coax Ethernet Extender Kit features two extenders. Installation is easy—just connect the extenders, then configure them using simple DIP switches.

    What's included:
    (2) 1-Port Coax Ethernet Extenders
    (2) 5V DC, 1A Power Adapters
    (1) CD containing the user's manual


    Technical Specifications for 1-Port Coax Ethernet Extender Kit:

    Environmental Operating temperature: 32 to 104° F (0 to 40° C);
    Humidity: (2) 5-95%, noncondensing
    CE Approval Yes
    Connectors DSL: (1) BNC;
    Ethernet: (2) RJ-45
    Indicators LEDs: (1) Power, (2) LAN, (1) BNC, (1) M/S
    Power (Input) 5V DC 1A from 110-/220-VAC, 50-/60 Hz power supply
    Size 1.1"H x 4.7"W x 3.5"D (2.8 x 12 x 9 cm)

    What's included:
    (2) 1-Port Coax Ethernet Extenders
    (2) 5V DC, 1A Power Adapters
    (1) CD containing the user's manual


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 1-Port Coax Ethernet Extender Kit:

    Application Diagrams


    Connect your 1-Port Coax Ethernet Extender Kit with:

    Accessory: EVNSL81-0006

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamondâ„¢ warranty!
    Cost: $35.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamondâ„¢ warranty!
    Cost: $69.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
